Chapter 2 — Electrostatic Potential And Capacitance

Fig 2.1 — Educational Diagram: Electrostatic Potential (V = W / q0) & Point Charge Field

What is electrostatic potential?

Electrostatic potential (usually called electric potential) at a point is the electric potential energy per unit charge placed at that point. It is a scalar quantity that tells how much work is required to bring a unit positive test charge from a chosen reference point (commonly infinity) to that point, without acceleration.

Definition (work form): The potential V at point P is the work done by an external agent in bringing a unit positive charge from infinity to P against the electrostatic forces, taken positive when work is done against the field. If W is work, V = W/q (for q = 1 C, V = W).

Line integral form: Using the electric field E, the potential at point r (with zero at infinity) is

V(r) = -∫_{∞}^{r} E · dl

and the potential difference between two points A and B is

ΔV = V(B) − V(A) = -∫_{A}^{B} E · dl.

Key properties:

• Potential is a scalar — contributions from multiple charges add algebraically (superposition).
• The electric field E is related to potential by E = −∇V (in Cartesian components: E_x = −∂V/∂x, etc.).
• Equipotential surfaces are surfaces on which V is constant; electric field lines are everywhere perpendicular to equipotential surfaces.
• Inside a conductor in electrostatic equilibrium, E = 0, so V is the same everywhere inside and on the conductor.
• Reference level for V is arbitrary; commonly V(∞)=0 is chosen for isolated charges.

Potential of common charge distributions (useful results):

• Point charge q at distance r (V(∞)=0): V(r) = (1 / (4πε₀)) · q / r.
• System of point charges q_i: V = Σ (1 / (4πε₀)) · q_i / r_i, where r_i is distance from q_i to the point.
• Continuous charge distribution: V(r) = (1 / (4πε₀)) · ∫ (ρ(r') / |r − r'|) dτ'.
• Conducting sphere of radius R carrying charge Q: outside (r ≥ R) V(r) = (1 / (4πε₀)) · Q / r; on and inside (r ≤ R) V = (1 / (4πε₀)) · Q / R (constant).

Physical meaning and use: Potential simplifies many problems (because it's scalar) and directly gives potential energy U = qV for a charge q at a point. Potential differences drive charge movement (current) and determine breakdown and discharge phenomena (e.g., lightning).

Fig 2.2 — Educational Diagram: Relation Between Electric Field & Potential (E = -dV/dr)

Definition: The electric potential (V) at a point is the potential energy per unit positive charge placed at that point. The potential difference between two points A and B, V_B - V_A, is the work done per unit charge by an external agent in moving a small positive test charge from A to B slowly (i.e. without acceleration).

Mathematical relation: In electrostatics the electric field E is conservative, so the potential difference between two points A and B is path independent and given by the line integral of the electric field:

• V_B - V_A = -∫_A^B E · dl

The negative sign shows that the potential decreases in the direction of the electric field. For an infinitesimal displacement dl, dV = -E · dl, and in vector form:

• E = -∇V (i.e. each component E_x = -∂V/∂x, etc.)

Special cases:

• Uniform field (for example between large parallel plates separated by distance d with field magnitude E directed from plate 1 to plate 2): V_B - V_A = -E·(r_B - r_A). If displacement is along field direction by distance s, V_B - V_A = -E s. Thus V varies linearly with position between plates.
• Point charge q at origin: V(r) = k q / r (choose V(∞)=0). Then E(r) = -dV/dr = k q / r^2 (radial) with direction away from positive charge.

Work and energy: If a charge q moves from A to B, change in potential energy is ΔU = q (V_B - V_A). Work done by the field = q (V_A - V_B).

Geometric picture: Equipotential surfaces are surfaces of constant V. The electric field lines are everywhere perpendicular to equipotentials. No work is done when a charge moves along an equipotential.

Sign conventions and units: Potential is a scalar (SI unit: volt, 1 V = 1 J/C). Positive charges move spontaneously from higher potential to lower potential (in the direction of E), losing potential energy.

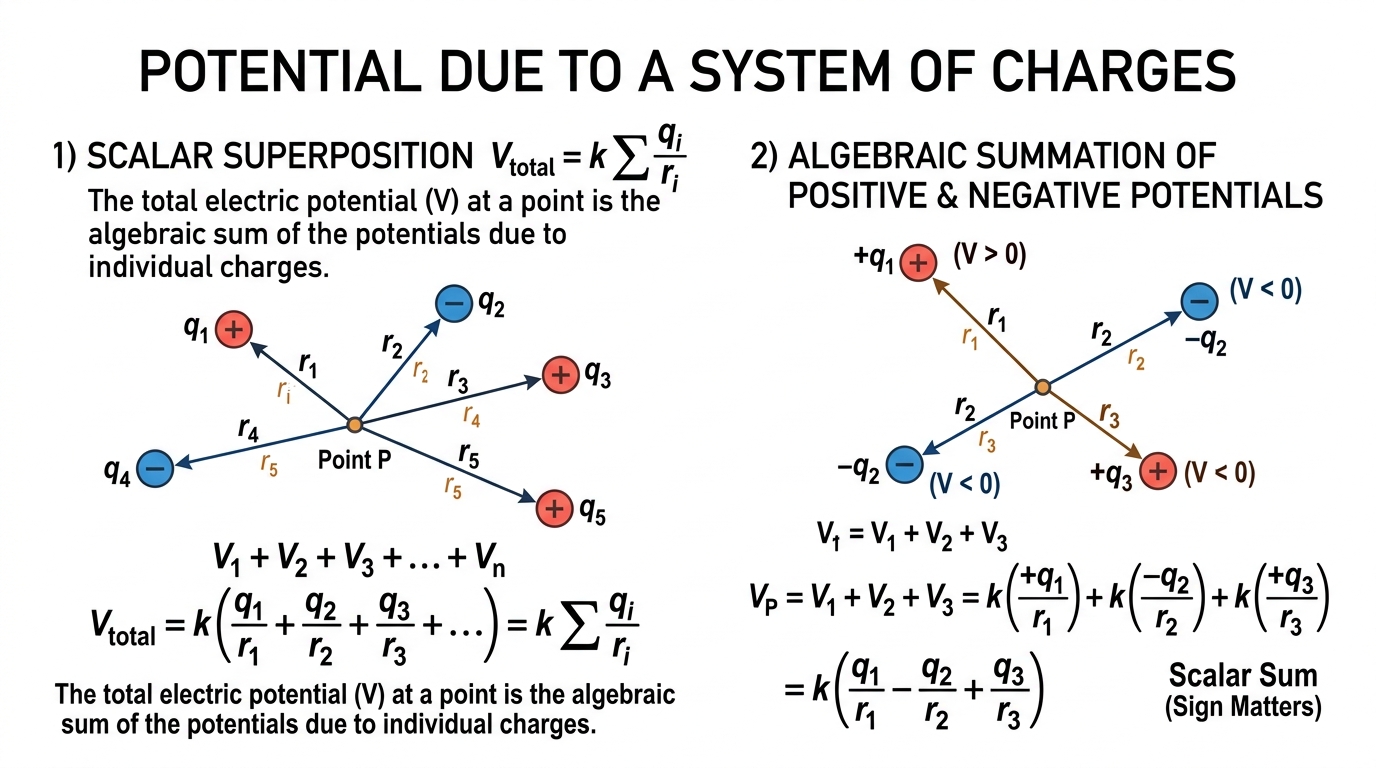

Fig 2.3 — Educational Diagram: Potential Due to System of Charges & Scalar Superposition

Definition: Electric potential V at a point in space is the work done by an external agent in bringing a unit positive charge from a reference point (usually infinity) to that point, without acceleration. Potential is a scalar quantity and is defined up to an arbitrary constant.

Potential due to a single point charge: For a point charge q at a distance r,

V = (1/4πε0) · q / r

Here 1/4πε0 is often written as k. Potential is taken zero at infinity unless otherwise stated.

Superposition principle for potentials: Because potential is scalar, the net potential at any point due to a system of discrete charges q_i is the algebraic sum of potentials due to each charge (no vector addition):

V_total = (1/4πε0) · Σ_i (q_i / r_i)

where r_i is the distance from charge q_i to the field point. For continuous charge distributions, replace the sum by an integral:

V = (1/4πε0) ∫ (1/r) dq

Relation between potential and electric field: Electric field E is related to potential by the negative gradient:

E = -∇V

This means equipotential surfaces (V = constant) are everywhere perpendicular to electric field lines.

Potential energy of a system of charges: Work required to assemble a set of point charges q_i from infinity is the electrostatic potential energy U of the system. Two common expressions are:

U = (1/2) Σ_i q_i V_i,

or equivalently

U = (1/4πε0) Σ_{i

Useful special cases (short forms and limits):

• Dipole (charges +q and −q separated by small distance): at large r, V ≈ (1/4πε0) (p·r̂)/r^2 = (1/4πε0) p cosθ / r^2, where p = q·d.
• Charged ring (radius a) on axis at distance x: V = (1/4πε0) · Q / √(x^2 + a^2).
• Spherical conductor (radius R) carrying total Q: outside (r ≥ R) V = (1/4πε0) Q / r; inside (r ≤ R) V = (1/4πε0) Q / R (constant).
• Infinite line of charge (linear density λ): V(r) ∝ ln(r) (requires chosen reference radius), e.g. V(r) = (λ/2πε0) ln(r0/r).
• Infinite sheet (surface charge σ): magnitude of field E = σ/2ε0 on each side, so potential varies linearly with distance: V(x) = −(σ/2ε0) x + const (choice of sign depends on orientation and reference).

Key properties and remarks:

• Potential is scalar so signs add algebraically; this makes calculations easier than vector field superposition.
• Only potential differences are physically measurable — absolute potential depends on chosen reference (commonly V(∞)=0).
• Equipotential surfaces: no work is done in moving a charge along an equipotential. Field lines are perpendicular to equipotentials.
• For conductors in electrostatic equilibrium, the entire conductor is an equipotential surface.

Fig 2.4 — Educational Diagram: Electric Potential of Dipole (V = k p cosθ / r^2)

Definition: An electric dipole consists of two equal and opposite charges +q and −q separated by a small distance d (often written as 2a). The dipole moment is a vector p = q d pointing from the negative to the positive charge.

Potential at a point P (physical picture): The electrostatic potential V at any point P due to a system of point charges is the algebraic sum of potentials due to each charge. For a dipole with charges +q and −q located symmetrically about the origin (±a on the dipole axis), the potential at P is

V = (1 / (4πε₀)) [ q / r₊ − q / r₋ ] ,

where r₊ and r₋ are distances from P to +q and −q respectively, and ε₀ is the permittivity of free space.

Exact expression on the axis: For a point on the dipole axis at distance x from the centre (x > a), the distances to the charges are (x − a) and (x + a). Thus

V_axis(x) = (1 / (4πε₀)) [ q/(x − a) − q/(x + a) ] = (1 / (4πε₀)) [ (2aq) / (x² − a²) ].

Approximate expression for points far from the dipole (r ≫ a): For points at large distance r from the dipole centre, keeping only leading terms in (a/r), the potential simplifies to

V(r,θ) ≈ (1 / (4πε₀)) · (p cosθ) / r²,

where p = q·(2a) (or generally p = qd if d is the separation) and θ is the angle between the dipole axis (direction of p) and the position vector r (angle measured from the dipole axis). This formula is the usual dipole approximation (valid for r ≫ separation).

Features and interpretation:

• The potential is a scalar and can be positive, negative or zero depending on cosθ. Along the axis in the direction of p (θ = 0) V ≈ (1/4πε₀) p / r² (positive if p points toward the field point). Along the opposite axis (θ = 180°) V ≈ −(1/4πε₀) p / r². On the equatorial plane (θ = 90°) V = 0 (to leading order).
• Equipotential surfaces of an ideal dipole (approx.) are not concentric spheres: they have lobed shapes with symmetry about the dipole axis (level surfaces given roughly by cosθ ∝ r²).
• The electric field can be obtained from potential: E = −∇V. For the dipole approximation the field components are E_r = (1/ (4πε₀)) (2p cosθ) / r³ and E_θ = (1/ (4πε₀)) (p sinθ) / r³ (in spherical coordinates).

Limits of validity: The approximate form V ≈ (1/4πε₀)(p cosθ)/r² holds only when r ≫ a (i.e., the observation distance is much larger than the separation between charges). For points close to either charge, the exact expression (sum of point-charge potentials) must be used.

Related results often used:

• Potential energy of a dipole in an external uniform electric field E: U = −p·E.
• Torque on a dipole in a uniform field: τ = p × E (tends to align p with E).

Units: Dipole moment p has SI units coulomb·metre (C·m). Potential V is in volts (V).

Fig 2.5 — Educational Diagram: Equipotential Surfaces & Zero Work Done (W = 0)

Definition: An equipotential surface is a surface on which every point has the same electric potential. In other words, the potential difference between any two points on an equipotential surface is zero.

Key properties:

• Electric field lines are everywhere perpendicular to equipotential surfaces. If E had a component along the surface, potential would change along that direction.
• No work is done by (or against) the electric field in moving a test charge along an equipotential surface: W = q(Vb − Va) = 0 for Va = Vb.
• Equipotential surfaces never intersect. If they did, a point of intersection would have two different potentials, which is impossible.
• The surface of a conductor in electrostatic equilibrium is an equipotential surface; the electric field just outside is normal to that surface. The potential is constant throughout the conductor.
• Spacing of equipotential surfaces indicates field strength: closer surfaces mean a stronger electric field (larger magnitude of the potential gradient).

Common examples of equipotential shapes:

• Point charge: equipotential surfaces are concentric spheres centered at the charge.
• Infinite line charge: equipotentials are coaxial cylinders.
• Infinite charged plane or parallel-plate capacitor: equipotentials are planes parallel to the plates.

Relation with electric field: The electric field is the negative gradient of potential. In differential form, E = -∇V. Along the normal direction n to an equipotential surface, the normal component is E_n = -dV/dn. Since V is constant on the surface, dV along the surface is zero, confirming E has no tangential component on an equipotential.

Physical significance: Equipotential surfaces help visualize the potential distribution and, together with electric field lines, give a complete picture of an electrostatic configuration. They are useful for solving boundary-value problems (e.g., using symmetry) and understanding why conductors shield interiors (Faraday cage effect).

Fig 2.6 — Educational Diagram: Conductors in Electrostatic Equilibrium (E = 0 inside, V = const)

In electrostatic equilibrium a conductor has no net motion of charge. This leads to a set of important consequences for the electric field and potential in and around the conductor.

Key properties

• Electric field inside a conductor is zero: E = 0 at every point within the bulk of a conductor. If E were nonzero, free charges would move until the field vanished.
• Conductor is an equipotential: The electric potential V is the same everywhere in the conducting material (including any cavities and the surface). Therefore, no potential difference exists between any two points inside a conductor.
• Field at the surface is normal: The electric field just outside a conductor is perpendicular to the surface. Any tangential component would move charges, violating equilibrium.
• Surface charge distribution: Any excess charge on a conductor resides on its outer surface(s). For conductors with cavities, charges induced by a charge placed in a cavity reside on the inner cavity surface; the conductor still has E = 0 in its body.
• Boundary condition (surface): The normal component of the electric field just outside a conductor relates to surface charge density σ by E_out = σ/ε0 (directed outward). Equivalently, ( E_out - E_in)·n̂ = σ/ε0, with E_in = 0 so E_out = σ/ε0.
• Shielding (Faraday cage): External electrostatic fields do not penetrate into the interior of a closed conducting shell; sensitive devices inside are shielded.

Relation between field and potential

Electric field and potential are related by E = -∇V. Since E = 0 inside the conductor, ∇V = 0 there and V is constant. Moving a test charge inside a conductor requires no work (ΔV = 0).

Potential of isolated conductors

For an isolated spherical conductor of radius R carrying total charge Q (all on the surface), the potential is the same as that of a point charge at the centre for points outside:

• For r ≥ R: V(r) = (1 / (4πε0)) · Q / r
• For r ≤ R (inside the conductor): V(r) = (1 / (4πε0)) · Q / R (constant)

Consequences and physical picture

• Surface field lines begin and end on surface charges and are perpendicular to the conductor surface.
• Grounding a conductor allows charge to flow to or from the Earth until the conductor reaches earth potential (V = 0 relative to Earth).
• If a charge is placed inside a cavity, induced charges appear on the cavity wall so the conductor material still has E = 0; the outside field corresponds to the net charge on the conductor.

Summary: In electrostatic equilibrium a conductor has zero internal electric field and a uniform potential. All excess charge lies on the surface(s), the external field is perpendicular to the surface and equals σ/ε0 just outside, and closed conducting shells shield their interiors from external static fields.

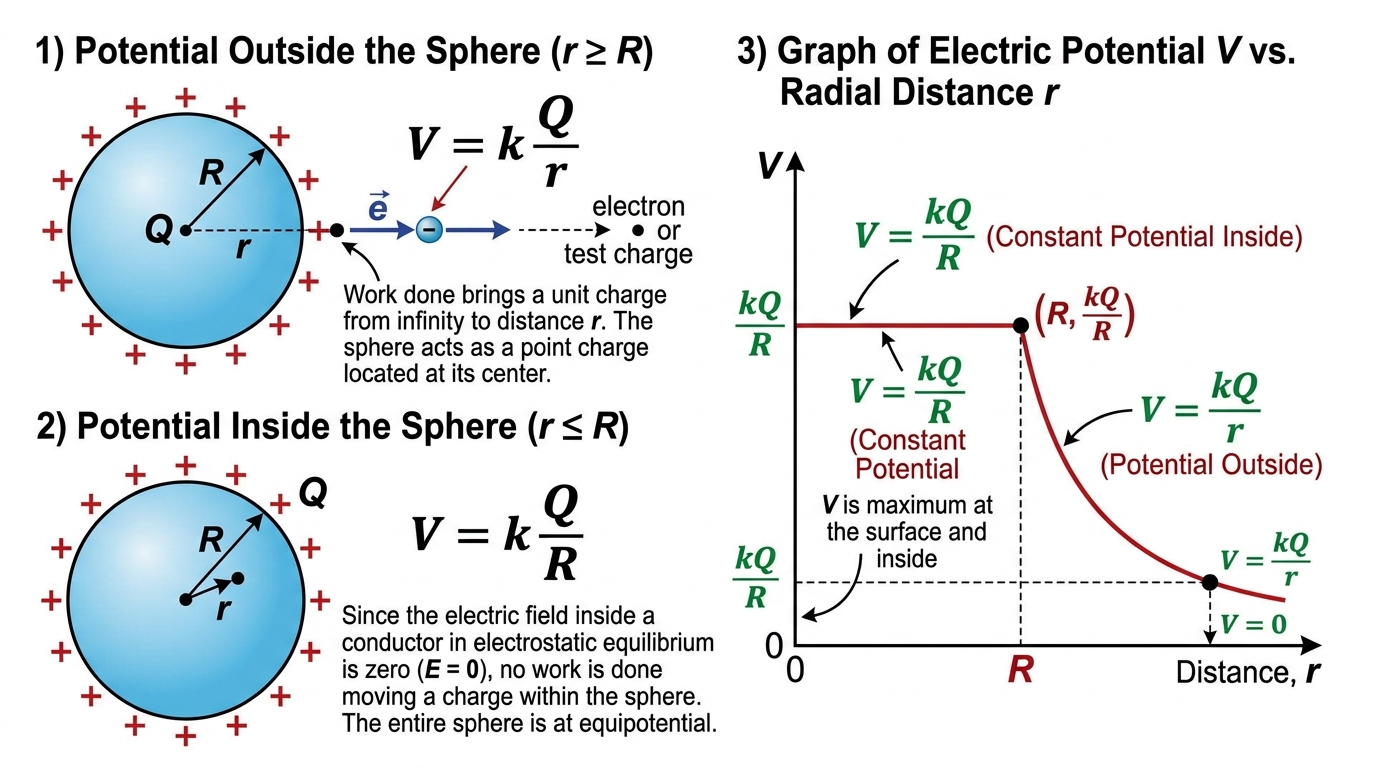

Fig 2.7 — Educational Diagram: Potential of Charged Spherical Conductor & V vs r Graph

Definition and physical picture: A charged spherical conductor of radius R carrying total charge Q has all excess charge distributed on its outer surface. The conductor is an equipotential body, so the electric potential is the same at every point on and inside the conductor.

Electric field: Outside the sphere (r > R) the field is identical to that of a point charge Q located at the centre: E(r) = (1 / (4 π ε₀)) * Q / r² directed radially outward (for Q > 0). Inside the conductor (r <= R) E = 0.

Potential (derivation sketch): Choose V(∞) = 0. Potential at a point r is V(r) = -∫_∞^r E · dr. For r > R use E(r') = (1 / (4 π ε₀)) Q / r'² :

V(r) = -∫_∞^r (1/(4 π ε₀)) (Q/r'²) dr' = (1/(4 π ε₀)) (Q/r).

Since E = 0 inside the conductor, the potential is constant throughout the interior and equals its value at the surface r = R:

V(r) = (1/(4 π ε₀)) (Q/R) for r <= R.

Summary:

• For r > R: V(r) = (1/(4 π ε₀)) (Q/r).
• For r <= R: V(r) = (1/(4 π ε₀)) (Q/R) (constant inside).

Key consequences: the potential is continuous at r = R (no jump), the conductor interior is equipotential, the potential sign follows the sign of Q (negative Q gives negative V), and potential is a scalar so contributions superpose.

Energy and capacitance: The capacitance of an isolated spherical conductor is C = 4 π ε₀ R. If the sphere has charge Q and potential V = Q/(4 π ε₀ R), the electrostatic energy stored is U = (1/2) QV = Q²/(8 π ε₀ R) = (1/2) C V².

Notes: (1) The zero of potential is usually taken at infinity. (2) For a conducting shell (hollow), potential is the same as for a solid conductor of same outer radius. (3) In presence of other charges or conductors, image charges and boundary conditions alter the potential; formulas above apply for an isolated spherical conductor in free space.

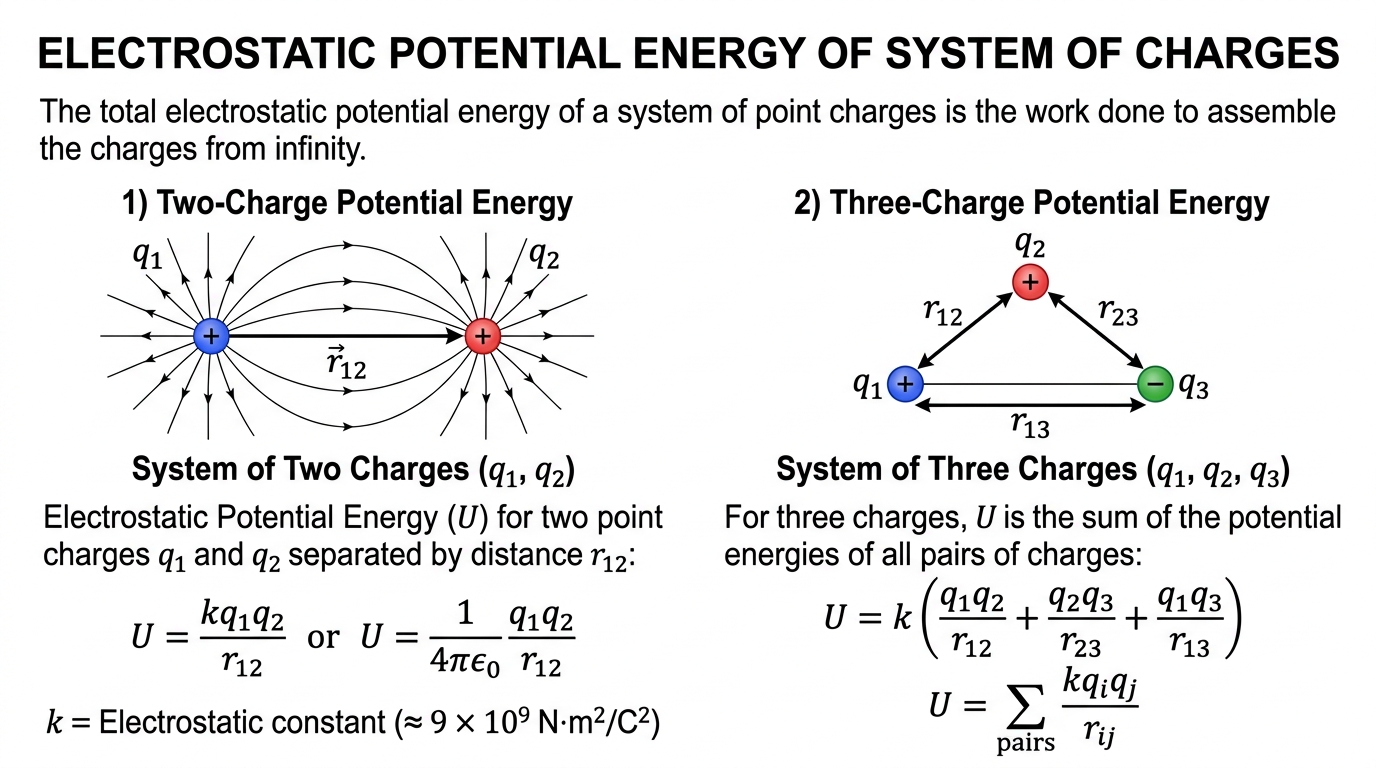

Fig 2.8 — Educational Diagram: Electrostatic Potential Energy of System of Charges

Definition: Electrostatic potential energy (U) of a charge configuration is the work required to assemble the charges from infinity to their given positions, against the electrostatic forces, with the reference U = 0 at infinite separations.

Key points and physical meaning:

• Electrostatic forces are conservative, so potential energy is path-independent and can be defined using a scalar potential V: U = qV for a charge q placed in potential V.
• Positive U means work must be done by an external agent to bring charges together (repulsive case); negative U indicates the configuration is bound and energy is released when formed (attractive case).
• Reference: U(∞)=0 is conventional. Potential energy depends on relative separations, not absolute positions.

Derivation for two point charges:

Consider two point charges q1 and q2 separated by distance r. The work done by an external agent to bring q2 from infinity to distance r from q1 (slowly) equals the increase in potential energy:

U = (1 / (4πε0)) * (q1 q2 / r).

This follows from U(r) − U(∞) = −∫∞^r F · dr and substituting Coulomb force F = (1 / (4πε0)) (q1 q2 / r^2) r̂.

System of many point charges:

For N point charges, the total electrostatic potential energy is the sum over distinct pairs:

U = (1 / (8πε0)) * Σ_{i≠j} (q_i q_j / r_{ij}) = (1/2) Σ_i q_i V_i,

where V_i is the potential at charge i due to all other charges. The factor 1/2 avoids double counting.

Continuous charge distribution:

For a continuous charge distribution with volume charge density ρ(r),

U = (1/2) ∫ ρ(r) V(r) dτ,

or equivalently, using the field E,

U = (ε0 / 2) ∫ E^2 dτ,

where the integral is over all space and u = (1/2) ε0 E^2 is the energy density of the electric field.

Energy in capacitors:

A capacitor stores electrostatic potential energy. For a capacitor with capacitance C, charge Q and potential difference V:

• U = (1/2) QV = (1/2) C V^2 = Q^2 / (2C)

Work done by field vs external agent:

If the field does positive work when charges move (attractive case), the external agent does negative work and potential energy decreases. For repulsive charges, external work is positive to bring them closer and U increases.

Sign conventions: If q1 q2 > 0 (like charges), U > 0. If q1 q2 < 0 (opposite charges), U < 0.

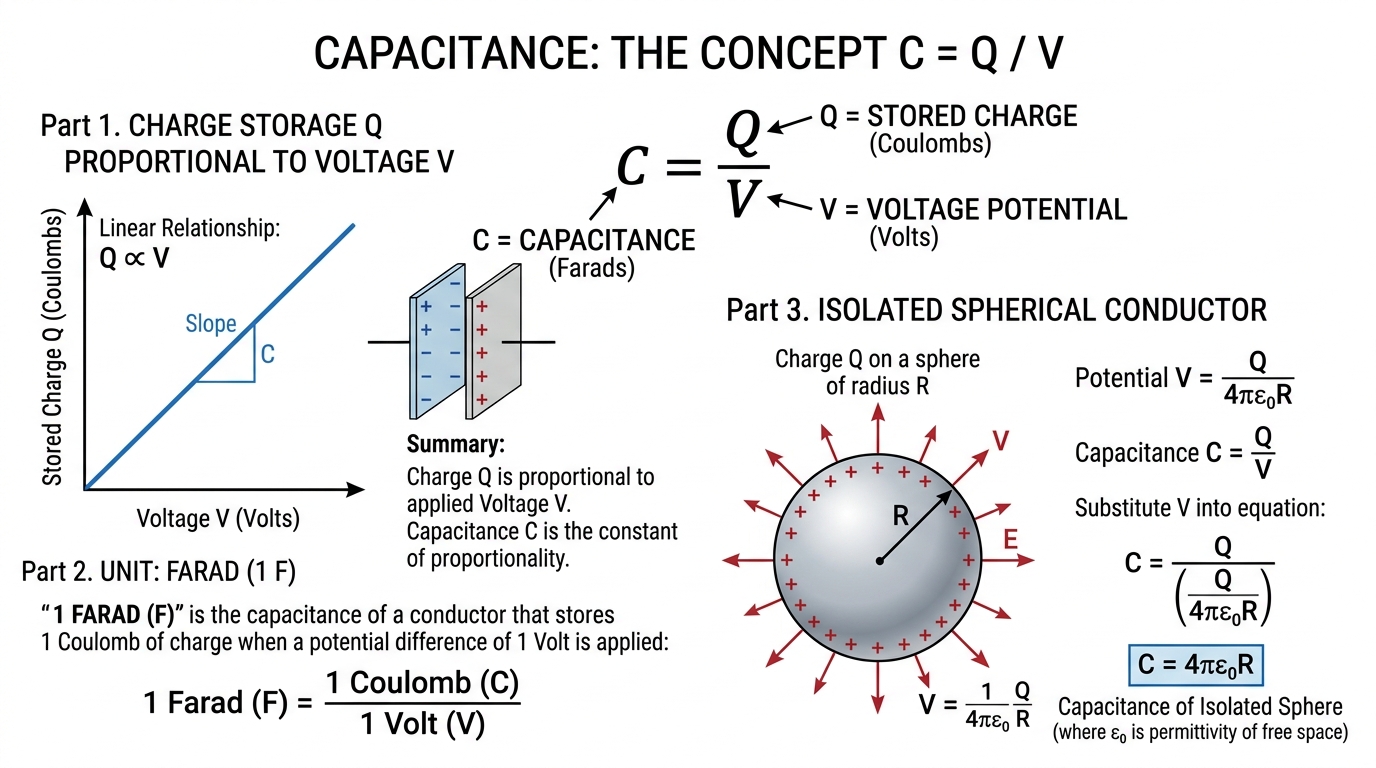

Fig 2.9 — Educational Diagram: Concept of Capacitance (C = Q / V) & Unit Farad

What is capacitance?

Capacitance is a measure of the ability of a conductor or a system of conductors to store electric charge for a given electric potential difference. For a conductor (or capacitor) carrying charge +Q on one plate and -Q on the other when the potential difference between them is V, the capacitance C is defined as

C = Q / V

Capacitance is a property of the geometry of the conductors and the intervening medium, not of the charge or voltage used. Its SI unit is the farad (F), where 1 F = 1 C/V.

Physical meaning

• When charges are separated (positive on one conductor and negative on the other) energy is stored in the electric field between them. Capacitance quantifies how much charge can be stored per unit potential difference.
• Higher capacitance means more charge stored for the same voltage. Capacitance increases with plate area and with the permittivity of material between plates, and decreases with plate separation.

Simple derivation for a parallel-plate capacitor

Consider two large parallel plates of area A separated by distance d, with vacuum (or a dielectric) between them.

Surface charge density σ = Q/A
Electric field between plates (approx) E = σ / ε = Q / (ε A)
Potential difference V = E d = Q d / (ε A)
Therefore C = Q / V = ε A / d

Here ε = ε0 εr where ε0 is the permittivity of free space and εr (or κ) is the relative permittivity (dielectric constant) of the material between plates.

Energy stored in a capacitor

Work done in charging a capacitor is stored as electrostatic energy. If charge increases from 0 to Q while potential increases from 0 to V, the energy stored U is

U = 1/2 Q V = 1/2 C V² = Q² / (2 C)

Energy is stored in the electric field. Energy density (energy per unit volume) in a dielectric is

u = (1/2) ε E²

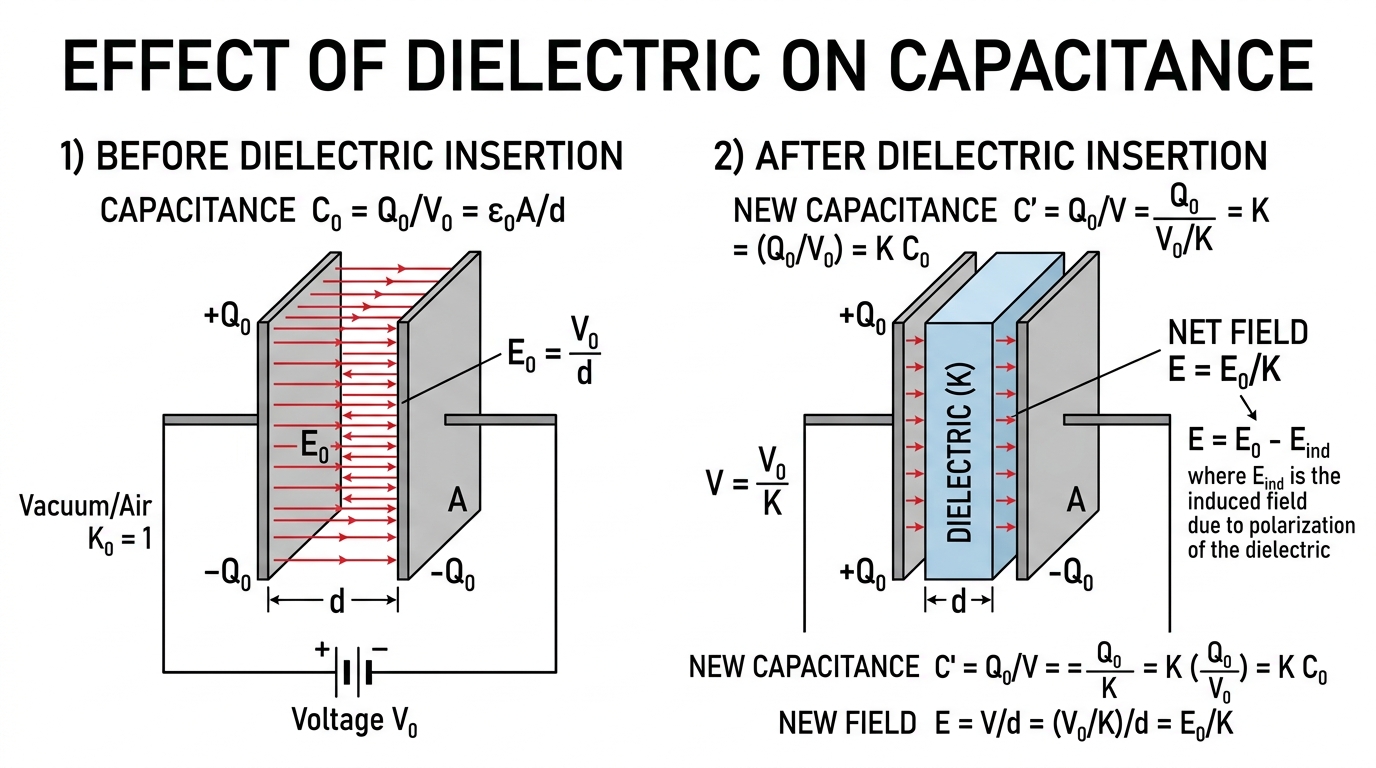

Effect of a dielectric

When a dielectric of relative permittivity εr = κ fills the space between the plates, the capacitance increases by factor κ:

C' = κ C = κ ε0 A / d

The dielectric reduces the effective field for a given free charge, allowing more charge to be stored at the same voltage.

Other practical points

• Capacitors in series and parallel combine like resistors (but inverted for series): For n capacitors C1, C2,... in parallel, Ceq = sum Ci. In series, 1/Ceq = sum (1/Ci).
• Real capacitors have a maximum safe voltage (breakdown) determined by the dielectric strength of the insulating material.
• Capacitors are used for energy storage, filtering, timing circuits, tuning (in radios), camera flashes, defibrillators, and many other applications.

Fig 2.10 — Educational Diagram: Parallel Plate Capacitor (C = ε0 A / d)

What it is: A parallel-plate capacitor consists of two large conducting plates, each of area A, placed parallel to each other and separated by a small distance d. One plate carries charge +Q and the other −Q. For d much smaller than the plate dimensions the electric field between the plates is nearly uniform and fringing effects at the edges can be neglected.

Electric field and potential difference: Using Gauss's law the field just outside a conductor with surface charge density σ = Q/A is E = σ/ε₀. Between the two oppositely charged plates the fields add and the net field (idealized, ignoring fringing) is E = σ/ε₀ = Q/(ε₀ A). The potential difference between plates is V = E d = Q d/(ε₀ A).

Capacitance (vacuum): Capacitance C is defined as C = Q/V. For the parallel-plate geometry this gives C = ε₀ A / d. Thus capacitance increases with plate area and decreases with plate separation. The usual SI unit is farad (F).

With a dielectric: If the space between plates is filled with a homogeneous dielectric of relative permittivity ε_r, replace ε₀ by ε = ε₀ε_r so C = ε A / d = ε₀ ε_r A / d. The dielectric reduces the effective field and allows more charge at the same V.

Energy stored and energy density: The energy stored in a charged capacitor is U = 1/2 QV = 1/2 C V² = Q²/(2C). The electric energy density (energy per unit volume) between plates is u = 1/2 ε E² (so total U = u × volume = u × A d).

Limitations and practical notes: The ideal formulas assume negligible fringing (valid when d << sqrt(A)). Real capacitors must also consider dielectric breakdown: the maximum voltage is limited by V_max ≈ E_breakdown · d. Edge fringing, surface roughness and dielectric losses can change capacitance and behavior. Variable capacitors (used in tuning circuits) change C by varying plate overlap or separation—principles derived from the parallel-plate model.

Derivation sketch (compact):

• σ = Q/A → E = σ/ε₀ = Q/(ε₀A) (between plates).
• V = ∫E·dl = E d = Q d/(ε₀A).
• C = Q/V = ε₀ A / d (vacuum), or C = ε A / d with dielectric ε = ε₀ε_r.

Practical importance: The parallel-plate capacitor is the basic model for many capacitors used in electronics (smoothing capacitors, timing, energy storage for flash), sensors (capacitive touch, position sensors) and microelectromechanical systems (MEMS) where plate separation or overlap is varied to change capacitance.

Fig 2.11 — Educational Diagram: Dielectrics & Molecular Polarization in External Field

Definition & general relation

Capacitance C of a conductor or a capacitor is the ratio C = Q/V, where Q is the magnitude of charge on one conductor and V is the potential difference between conductors (SI unit: farad, F). For linear dielectrics, C is independent of Q and V. The energy stored is U = 1/2 C V² = Q²/(2C) = 1/2 QV.

1. Parallel-plate capacitor (most common model)

• Geometry: two large plates of area A separated by distance d (d << linear dimensions of plates; edge effects neglected).
• Electric field between plates: E = σ/ε₀ = Q/(ε₀ A) (directed from + plate to − plate).
• Potential difference: V = E d = Q d/(ε₀ A).
• Capacitance: C = Q/V = ε₀ A / d. With a dielectric of relative permittivity κ filling the space, C = κ ε₀ A / d = ε A / d where ε = κ ε₀.
• Energy density between plates: u = 1/2 ε E² = 1/2 (ε₀ or ε) (V/d)².

2. Spherical conductor(s)

• Isolated conducting sphere of radius R (with reference at infinity): potential V = Q/(4π ε₀ R) ⇒ C = 4π ε₀ R. (This gives the capacitance of a single isolated sphere.)
• Concentric spherical capacitor: inner radius a, outer radius b. Field for a<r<b is E = Q/(4π ε₀ r²). Potential difference V = Q/(4π ε₀) (1/a − 1/b). Capacitance: C = Q/V = 4π ε₀ / (1/a − 1/b) = 4π ε₀ a b /(b − a). If dielectric with permittivity ε fills region, replace ε₀ by ε.
• Limit b → ∞ reduces the concentric result to the isolated sphere C = 4π ε₀ a.

3. Cylindrical (coaxial) capacitor

• Geometry: inner conductor radius a, outer cylindrical shell radius b, length L (assume L ≫ b so end effects neglected).
• Line charge density λ = Q/L. Electric field in a<r<b: E(r) = λ /(2π ε₀ r).
• Potential difference: V = ∫_a^b E·dr = (λ / 2π ε₀) ln(b/a).
• Capacitance: C = Q/V = (2π ε₀ L)/ln(b/a). Per unit length: C' = 2π ε₀ / ln(b/a). With dielectric (permittivity ε) fill, C = (2π ε L)/ln(b/a).

Assumptions and edge effects

• All formulas above neglect fringe fields and assume ideal infinite or sufficiently large geometries (d ≪ plate dimensions, L ≫ radii for cylinders).
• If dielectrics partially fill gaps or are non-uniform, use series/parallel combinations or solve Laplace's equation with boundary conditions.

Fig 2.12 — Educational Diagram: Effect of Dielectric Slab on Capacitance (C' = K C0)

What it means
A combination of capacitors is an arrangement of two or more capacitors connected together so that the whole network behaves like a single equivalent capacitor. The two simplest arrangements are series and parallel; more complex networks are reduced stepwise using these rules and symmetry.

Parallel combination
When capacitors are connected in parallel, their plates of like potential are connected together. Each capacitor has the same potential difference V across it. The total charge stored is the sum of charges on each capacitor, so the equivalent capacitance C_eq is the sum of individual capacitances.

Series combination
When capacitors are connected in series, the same charge Q appears on each capacitor (on the facing plates charges are equal and opposite). The total potential difference across the series string is the sum of voltages across each capacitor. The reciprocal of the equivalent capacitance equals the sum of reciprocals of individual capacitances.

Key points and rules

• Parallel: voltage same (V), charges add: Q_total = ΣQ_i, C_eq = ΣC_i.
• Series: charge same (Q), voltages add: V_total = ΣV_i, 1/C_eq = Σ(1/C_i).
• For identical capacitors: n in parallel → C_eq = nC; n in series → C_eq = C/n.
• When connecting charged capacitors, total charge is conserved on isolated conductors, but electrostatic energy is not necessarily conserved (some energy may be dissipated as heat or radiation during redistribution).
• If a network is connected to a voltage source (battery), the battery fixes the total potential difference; if isolated, the total charge on the network is fixed.

Derivations (brief)

• Parallel: Q_i = C_i V, so Q_total = ΣC_i V = (ΣC_i) V ⇒ C_eq = ΣC_i.
• Series (two capacitors): for C1 and C2 with same charge Q, V_total = Q/C1 + Q/C2 = Q(1/C1 + 1/C2) ⇒ 1/C_eq = 1/C1 + 1/C2. Generalizes to n capacitors: 1/C_eq = Σ(1/C_i).

Energy in combinations
Energy stored in a capacitor: U = 1/2 C V^2 = Q^2/(2C) = (1/2) Q V. Use the form convenient to known quantities. For combinations, compute C_eq and the total energy using U_total = 1/2 C_eq V_total^2 when connected to a battery, or sum individual energies if charges/voltages on each are known.

Practical points

• Series connection is used to increase working voltage (capacitances reduce). Resistors are often added in parallel with each capacitor to equalize voltages when tolerances differ.
• Parallel connection is used to increase total capacitance (energy storage, smoothing in power supplies) while keeping the same voltage rating.
• When mixing dielectrics or connecting to/removing a battery, track whether voltage or charge is fixed to apply conservation correctly.
• To analyze complex networks: identify series/parallel groups, simplify step-by-step, and use symmetry (equipotential nodes) where applicable.

Fig 2.13 — Educational Diagram: Capacitors in Series and Parallel Circuits

What is being stored? A capacitor stores electrical energy in the electric field between its conductors when charge is placed on the plates. This energy is equal to the work done to move charge from one plate to the other against the electric potential difference.

Derivation (class 12 level):

• Let a capacitor of capacitance C be charged so that one plate has charge +q and the other −q. The potential difference between plates is v = q/C.
• To add an infinitesimal charge dq against the potential v requires work dW = v dq = (q/C) dq.
• Total work (energy stored) in charging from q = 0 to q = Q is

  W = ∫(0→Q) (q/C) dq = Q²/(2C).

• Using Q = CV and V = Q/C, equivalent forms are:
  U = 1/2 QV = Q²/(2C) = 1/2 C V².

Energy density (energy per unit volume):

• For a parallel-plate capacitor with plate area A, separation d and dielectric permittivity ε, C = εA/d. Electric field between plates: E = V/d.
• Total energy U = 1/2 CV² = 1/2 (εA/d) (E d)² = 1/2 ε E² (Ad).
• Thus energy density u = U/(volume) = 1/2 ε E². This shows energy is stored in the electric field itself.

Effect of dielectric insertion:

• If dielectric constant is κ, new capacitance C' = κC.
• Two cases: (a) capacitor isolated (Q constant): U = Q²/(2C') so U decreases when dielectric inserted — mechanical work is done by the system (dielectric is pulled in). (b) capacitor connected to battery (V constant): U = 1/2 C' V² so U increases — extra energy delivered by battery.

Distribution of energy in combinations:

• Parallel: capacitors share same V, total energy U = 1/2 C_total V² where C_total = ΣC_i.
• Series: same charge Q on each, energy U = Σ (Q²/(2C_i)).

Physical meaning and notes:

• Energy is stored in the electric field; energy density 1/2 εE² applies locally at every point in the field.
• During charging, half the energy supplied by the source is stored in the capacitor and the other half is dissipated as heat in the resistor in a simple RC circuit (for idealized constant-voltage source and linear resistor).
• Capacitors can release energy very quickly (high power pulses), so safety precautions are needed — they can cause shocks even when the circuit is off.

Fig 2.14 — Educational Diagram: Energy Stored in Capacitor (U = 1/2 C V^2) & Energy Density

What is a dielectric? A dielectric is an insulating material (non-conductor) that can be polarized when placed in an external electric field. Common dielectrics: glass, mica, paper, plastics, ceramic, and water (a polar liquid).

Polarization — physical meaning
When an external electric field E is applied, charges inside the dielectric shift slightly: positive charges shift a bit in the direction of E and negative charges opposite. This creates tiny electric dipoles or aligns permanent dipoles, producing a net dipole moment per unit volume called the polarization vector P (units C m⁻²). Polarization reduces the net field inside the material.

Mechanisms of polarization

• Electronic polarization: displacement of electron cloud relative to nucleus (fast, occurs in all atoms).
• Ionic (atomic) polarization: relative displacement of positive and negative ions in an ionic solid.
• Orientation (dipolar) polarization: alignment of permanent molecular dipoles (e.g., H2O). Requires thermal agitation to be overcome; frequency and temperature dependent.

Bound charges
Polarization produces bound surface and volume charges. If n is the outward unit normal to the surface, the bound surface charge density is σ_b = P · n. The bound volume charge density is ρ_b = −∇ · P. These bound charges produce a field that opposes the applied field.

Electric displacement (D)
Define the electric displacement vector D to simplify Gauss's law in presence of dielectrics: D = ε0 E + P. For linear, isotropic dielectrics P = ε0 χ_e E, so D = ε0 (1 + χ_e) E = ε E, where ε = ε0 ε_r and ε_r = 1 + χ_e is the relative permittivity (dielectric constant).

Linear dielectric relations (most common case)

• P = ε0 χ_e E
• D = ε0 E + P = ε0 (1 + χ_e) E = ε E
• ε_r (dielectric constant) = 1 + χ_e

Effect on capacitance
Inserting a dielectric of relative permittivity ε_r between capacitor plates increases capacitance by factor ε_r: C = ε_r C_0 = ε0 ε_r A / d, where C_0 = ε0 A/d is capacitance in vacuum. The dielectric reduces effective field, allowing more charge for same voltage.

Energy in dielectric-filled capacitor
Energy stored: U = 1/2 C V^2 = 1/2 ∫ E · D dV. Energy density in a linear dielectric: u = 1/2 E · D = 1/2 ε E^2.

Dielectric breakdown and loss
Dielectrics have a maximum field they can withstand (breakdown strength). Real dielectrics also exhibit dielectric losses (energy dissipated as heat), and ε_r depends on frequency and temperature; special materials (ferroelectrics) show strong, nonlinear polarization and temperature-dependent behavior (Curie point).

Summary
Dielectrics, when polarized, generate bound charges that modify internal fields; characterization uses P, D, χ_e and ε_r. They increase capacitance and store electrostatic energy but are limited by breakdown and losses.

Fig 2.15 — Educational Diagram: Van de Graaff High-Voltage Generator Construction

Overview
When a dielectric slab is inserted between the plates of a capacitor the capacitance changes because the permittivity between the plates changes. The practical situations of interest are (A) dielectric inserted/withdrawn while the battery remains connected (voltage V constant) and (B) dielectric inserted/withdrawn after the battery is disconnected (charge Q constant). Two common geometries are discussed below: (1) dielectric partially inserted by overlap (varying area covered) and (2) dielectric filling part of the separation (varying effective separation).

Geometry 1 — partial insertion across plate area (parallel model)
Consider parallel-plate capacitor of plate area A = bL and separation d. A dielectric slab (thickness = d so it fits the gap) is inserted to a length x (0 ≤ x ≤ L) so that area bx is covered by dielectric and area b(L−x) by air. The system is equivalent to two capacitors in parallel:

• C_dielectric(x) = κ ε0 (b x) / d
• C_air(x) = ε0 (b (L − x)) / d
• Total C(x) = ε0 b/d [κ x + (L − x)] = (ε0 b/d) [L + (κ − 1)x]

Energy and force — area insertion
Let dC/dx = (ε0 b/d)(κ − 1) > 0 (κ > 1).

• Battery connected (V constant): U(x) = (1/2) C(x) V^2. The force pulling the slab in (to increase x) is
  F = dU/dx = (1/2) V^2 dC/dx = (1/2) V^2 (ε0 b/d)(κ − 1).
  Magnitude is constant (independent of x) and directed so as to increase the dielectric overlap.
• Battery disconnected (Q constant): U(x) = Q^2/[2 C(x)]. The force (magnitude) is
  F = Q^2/(2 C(x)^2) · dC/dx = (Q^2/2) · (dC/dx) / C(x)^2,
  positive (pulls slab in). Here F varies with x because C(x) varies with x.

In both cases the dielectric is pulled into the capacitor (the system moves toward higher capacitance). The difference is where the energy change comes from: with V constant the battery supplies charge/work; with Q constant the stored electrostatic energy decreases and that decrease provides the work that pulls the slab in.

Geometry 2 — dielectric filling part of the gap (series model)
If a dielectric of thickness t (t ≤ d) is inserted so that part of the gap between plates is filled along the separation, the capacitor can be modelled as two capacitors in series: one layer of dielectric (thickness t, permittivity κ ε0) and one layer of air (thickness d − t, permittivity ε0). The effective capacitance is

C(t) = [ (d − t)/ (ε0 A) + t/(κ ε0 A) ]^{-1} = ε0 A / [ d − t (1 − 1/κ) ].

Force — thickness insertion
Differentiate energy vs t:

• V constant: U = (1/2) C(t) V^2, so
  F = dU/dt = (1/2) V^2 dC/dt = (1/2) V^2 · ε0 A · (1 − 1/κ) / [d − t(1 − 1/κ)]^2.
• Q constant: U = Q^2/[2 C(t)], so
  F = Q^2/(2 C(t)^2) · dC/dt (same sign — slab is pulled in).

Key physical points

• Insertion always increases capacitance (if κ > 1) and the dielectric is attracted into the capacitor (force acts to increase the dielectric-filled region).
• With V constant, stored energy increases as C increases: battery does work and supplies extra charge. With Q constant, stored energy decreases as C increases: that energy difference does mechanical work (pulls the slab in).
• For the parallel-area case the force for V constant is constant (independent of x); for Q constant it depends on x through C(x).

When to use parallel vs series models
Use the parallel-area model when the dielectric changes the fraction of area covered by different permittivities (slab sliding in/out along the plate surface). Use the series-thickness model when the dielectric changes the thickness of dielectric layers along the field direction (slab inserted between plates normal to plates).

Fig 2.16 — Educational Diagram: Work Done on Equipotential Surfaces & Closed Path Integral

Introduction
An RC circuit contains a resistor (R) and a capacitor (C). When connected to a voltage source the capacitor charges through the resistor; when disconnected from the source and connected across the resistor it discharges. Both processes follow exponential laws characterized by the time constant τ = RC.

Charging of a capacitor (series RC with battery &egr;)

Consider a series circuit: battery (&egr;), resistor R and capacitor C (initially uncharged). Using Kirchhoff's loop law:

&egr; - iR - q/C = 0, where i = dq/dt.

Therefore dq/dt + q/(RC) = &egr;/R. Solve this first-order linear ODE (initial condition q(0)=0) to get:

• Charge: q(t) = C&egr; [1 - exp(-t/RC)] = Q(1 - e^{-t/τ})
• Capacitor voltage: V_C(t) = q(t)/C = &egr; [1 - e^{-t/τ}]
• Current: i(t) = dq/dt = (&egr;/R) e^{-t/RC} = (Q/τ) e^{-t/τ}

At t = 0, i(0) = &egr;/R (maximum). As t → ∞, q → Q = C&egr; and i → 0.

Discharging of a capacitor

Take a capacitor with initial charge q(0)=Q0 (voltage V0 = Q0/C) discharged through resistor R (no battery). Loop law gives:

iR + q/C = 0 with i = dq/dt, so dq/dt + q/(RC) = 0.

Solution (with q(0)=Q0):

• Charge: q(t) = Q0 e^{-t/RC}
• Voltage on capacitor: V_C(t) = V0 e^{-t/RC}
• Current: i(t) = dq/dt = -(Q0/RC) e^{-t/RC} = -(V0/R) e^{-t/RC}

The negative sign indicates direction of current opposite to the charging direction. At t=0 current is maximum i(0)=V0/R and it decays to zero exponentially.

Time constant and characteristic behaviour

• Time constant τ = RC (seconds). It gives the time scale of change: after t = τ, the charging capacitor reaches 63.2% of its final value; the discharging capacitor falls to 36.8% of its initial value.
• After t = 5τ the capacitor is essentially (>99%) charged or discharged — practical steady state.
• Half-life for voltage/charge: t_1/2 = RC * ln(2).

Energy

Energy stored in capacitor at any time: U(t) = 1/2 C [V_C(t)]². For final charged state U_final = 1/2 C&egr;². During charging half of the energy supplied by the battery is dissipated as heat in R and half is stored in the capacitor: E_dissipated = 1/2 C&egr;².

Physical interpretation and practical notes

• The resistor limits current so charging is not instantaneous. Smaller R or larger C increases τ, producing slower response; small τ gives faster charging/discharging.
• Sign conventions: during charging current flows into the plate that becomes positively charged; during discharging current direction reverses.
• Experimental method: plotting ln(V_C) versus t for discharging gives a straight line with slope -1/RC.

Summary: Charging and discharging are exponential processes governed by differential equations with solutions q(t)=Q(1-e^{-t/RC}) (charging) and q(t)=Q0 e^{-t/RC} (discharging). The single parameter RC (time constant) sets the speed of the process.

Fig 2.17 — Educational Diagram: Electrostatic Boundary Conditions & Shielding Effect

This topic ties the theoretical ideas of electrostatic potential and capacitance to practical uses and laboratory measurements. Electrostatic potential (V) is the potential energy per unit charge due to static charge distributions; capacitance (C) quantifies a system's ability to store charge at a given potential difference. Applications exploit the relationships V = kq/r, E = -∇V and C = Q/V, and experimental aspects show how to measure potentials, fields, capacitances and dielectric properties.

Key experimental methods

• Equipotential/Electric field mapping: Using conducting paper or a flat electrolytic tank with two electrodes and a voltmeter, one traces lines of constant potential (equipotentials). Field lines are orthogonal to equipotentials; E can be estimated from the spacing of equipotential lines or measured directly by ∆V/∆s.
• Capacitance measurement: Use a digital LCR meter, capacitance bridge (De Sauty or Schering bridge for insulating losses), or by making an RC circuit and determining the time constant τ = RC from charge/discharge curves.
• Dielectric constant (εr) determination: Measure C with and without the dielectric in a parallel-plate capacitor. εr = C_with / C_air (or C0). Ensure plate area A and separation d are known; account for fringing if plates are small.
• Demonstrations of charging methods: Leyden jar, Van de Graaff generator, and charging by induction/conduction show storage of charge and high potentials. Photocopiers and electrostatic precipitators demonstrate practical use of electrostatic charge and fields.
• Breakdown and dielectric strength: Gradually increase voltage across a capacitor to observe breakdown; V_breakdown ≈ E_breakdown · d. This yields the dielectric strength of the medium.

Common laboratory observations and safety: Capacitors can retain charge—always discharge through a resistor before handling. High-voltage apparatus (Van de Graaff, power supplies) require insulation and grounding. Measurement errors come from stray capacitances, lead inductance, and dielectric absorption.

How experiments illustrate theory

• Equipotential maps visually confirm E = -∇V and show potential contours around point, line and plate charges.
• RC charge/discharge experiments confirm Q(t)=Q0(1−e^{-t/RC}), V(t)=V0 e^{-t/RC} and determine C from measured τ.
• Capacitance vs geometry experiments verify C ∝ A and C ∝ 1/d for parallel-plate capacitors and demonstrate the effect of dielectric (C increases by factor εr).
• Energy storage experiments measure U = 1/2 CV^2 (or integrate V dQ) and show conversion to other forms (e.g., flashing a lamp, heating a resistor).

Practical applications (summary)

• Energy storage and pulse power: camera flash units, defibrillators and pulsed lasers use capacitors to store and release energy quickly.
• Filtering and smoothing in electronics: capacitors remove ripple in power supplies and form part of timing and filter circuits (RC time constant).
• Tuning and frequency selection: variable capacitors tune radios (LC resonance).
• Sensors and transducers: capacitive touch screens, proximity sensors, MEMS accelerometers and humidity sensors rely on capacitance changes.
• Electrostatic precipitation and printing: remove particulates from gases or control toner in photocopiers/inkjet printers using electrostatic forces.
• High-voltage generation and beam control: Van de Graaff generators and electrostatic lenses in cathode ray and electron-beam devices.
