Chapter 12 — Mineral Nutrition

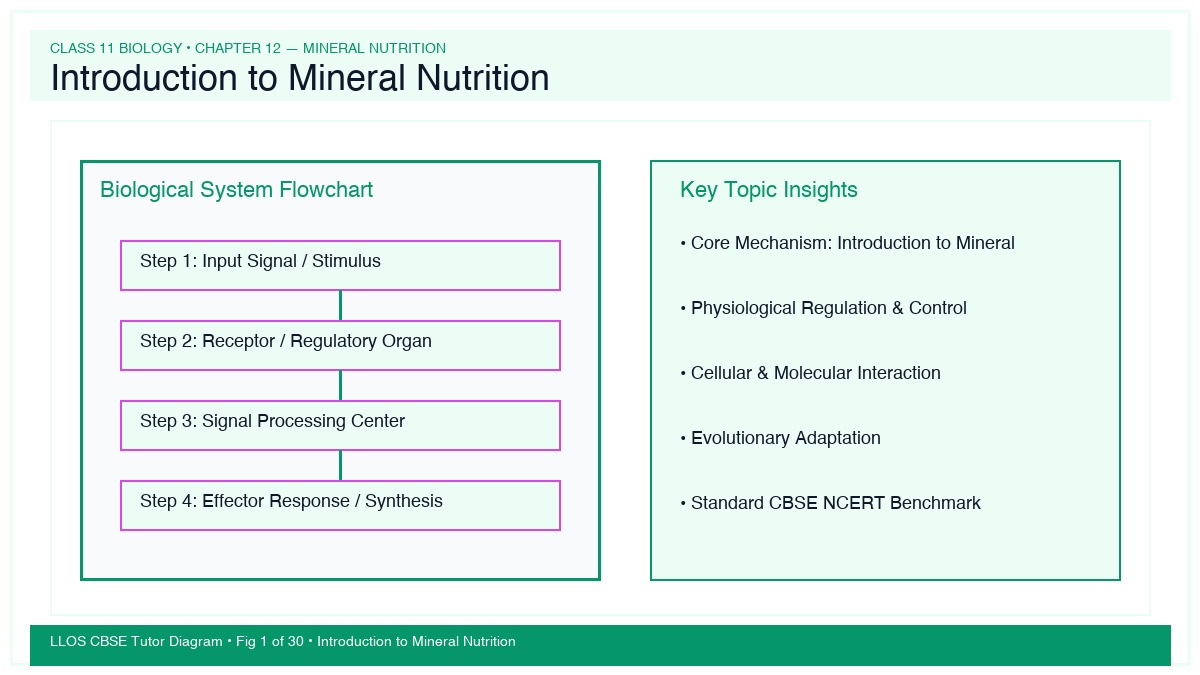

Fig 1 — Educational Diagram: Introduction to Mineral Nutrition

What is mineral nutrition? Mineral nutrition is the study of how plants obtain mineral nutrients from the soil, how these elements are transported and used in metabolic processes, and how their deficiency or excess affects growth and development.

Essential mineral elements — An element is considered essential for a plant if (a) it is required to complete the life cycle, (b) no other element can substitute for it, and (c) it is directly involved in plant metabolism. Elements are classified by quantity required:

• Macronutrients (required in larger amounts): C, H, O (from air/water), and mineral macronutrients: N, P, K, Ca, Mg, S.
• Micronutrients/Trace elements (required in small amounts): Fe, Mn, Zn, Cu, Mo, B, Cl, Co, Ni.

Sources of mineral elements — Most minerals come from the parent rock (weathering) and soil solution; some (C, H, O) come from CO2 and water. Biological sources: nitrogen-fixing bacteria, decomposition of organic matter, and fertilizer application (e.g., N-P-K fertilizers).

How roots take up minerals

• Root surface & root hairs: increase absorptive area.
• Pathways to xylem: apoplast (cell wall and intercellular spaces) and symplast (through cytoplasm via plasmodesmata). Endodermis (Casparian strip) forces selective uptake into symplast before xylem.
• Mechanisms:
  • Passive uptake: diffusion driven by concentration gradients or mass flow with transpiration (for some ions and water).
  • Active uptake: carrier proteins and pumps (ATP-driven) transport ions against their electrochemical gradients; shows saturation kinetics.
  • Cation exchange: roots release H+ to replace cations (Ca2+, Mg2+, K+) bound to soil colloids so they enter soil solution and can be absorbed.

Role of soil factors — pH, texture, organic matter, moisture and aeration determine availability of mineral ions. For example, Fe and Mn become less available in alkaline soils; phosphorus availability is affected by fixation with Ca or Al/Fe depending on pH.

Biological interactions

• Mycorrhizae: mutualistic associations between fungi and roots that extend absorptive surface and enhance uptake of P, micronutrients and water.
• Rhizobia & other N-fixers: convert atmospheric N2 to biologically available NH3 in legume root nodules or free-living bacteria (e.g., Azotobacter).

Practical systems & experimental proof — Hydroponics and nutrient culture (e.g., Hoagland solution) demonstrate that plants provided with proper mineral nutrient solutions grow normally without soil. Water-culture experiments helped identify essential elements and deficiency symptoms.

Deficiency and toxicity — Specific deficiency symptoms (e.g., chlorosis with Fe deficiency, stunted growth with N deficiency) help diagnose nutrient problems. Excess salts (salinity) and over-fertilization cause toxicity and reduced water uptake.

Summary — Mineral nutrition integrates soil chemistry, root physiology and plant biochemistry. Proper supply and balance of essential minerals are critical for plant growth, crop yields and ecosystem health.

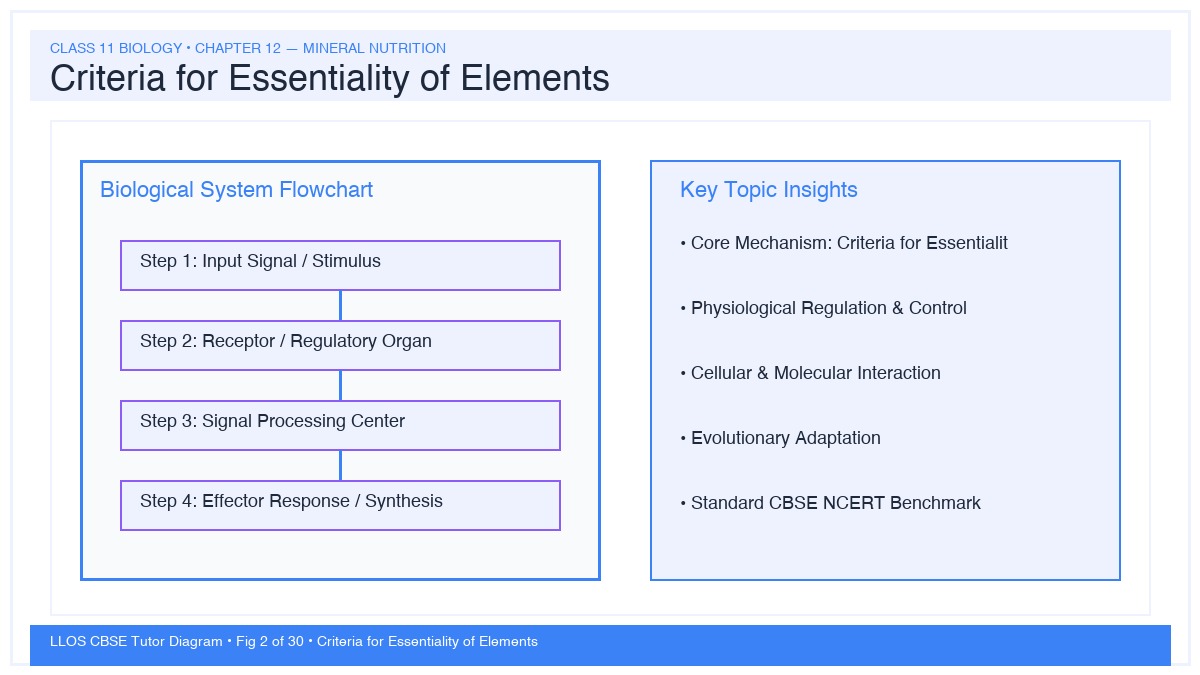

Fig 2 — Educational Diagram: Criteria for Essentiality of Elements

Definition & context: An element is called essential for a plant if it is absolutely required for the plant to complete its life cycle, i.e., to grow, reproduce and produce viable seeds. Not all elements present in plants are essential; some are merely beneficial or even toxic at high concentrations.

Main criteria (Arnon, 1949 — widely used):

• Requirement for completion of life cycle — A plant deprived of the element cannot complete its life cycle (no normal growth, flowering or seed formation).
• Specific function (non‑replaceability) — The function performed by this element cannot be taken over by another element.
• Direct involvement in metabolism — The element must be directly involved in plant metabolic processes (for example, as part of an essential molecule or as a cofactor in enzymes).

How these criteria are tested (common experimental approach):

• Hydroponic or nutrient‑culture experiments where the suspected element is omitted from the nutrient medium while all others are supplied in adequate amounts.
• Observation of reproducible deficiency symptoms, reduced growth and failure to reproduce when omitted.
• Reversal test: restoring the element should restore normal growth (complementation).
• Biochemical evidence showing the element’s role in specific molecules or reactions (e.g., Mg at the center of chlorophyll; Fe in cytochromes).

Distinguishing essential vs beneficial: If an element improves growth but plants can complete their life cycle without it, it is beneficial (e.g., silicon in many cereals) but not strictly essential. If one species requires an element but another does not, the element is essential only for the dependent species.

Examples of direct metabolic roles (illustrating criterion 3):

• Magnesium (Mg): central atom of chlorophyll — directly part of the photosynthetic pigment.
• Iron (Fe): component of cytochromes and ferredoxin — involved in electron transport and redox reactions.
• Boron (B): involved in cell wall structure and pollen tube growth — essential for reproduction.
• Nitrogen (N): constituent of amino acids, nucleic acids, chlorophyll — essential building block of organic molecules.

Important practical note: Liebig's law of the minimum complements essentiality: plant growth is limited by the scarcest essential nutrient — proving essentiality often requires showing that this nutrient is the limiting factor for growth.

Summary: To declare an element essential one must show (1) it is required for normal completion of the life cycle, (2) its function cannot be replaced by another element, and (3) it has a direct metabolic role. Experimental omission, restoration and biochemical evidence together establish essentiality.

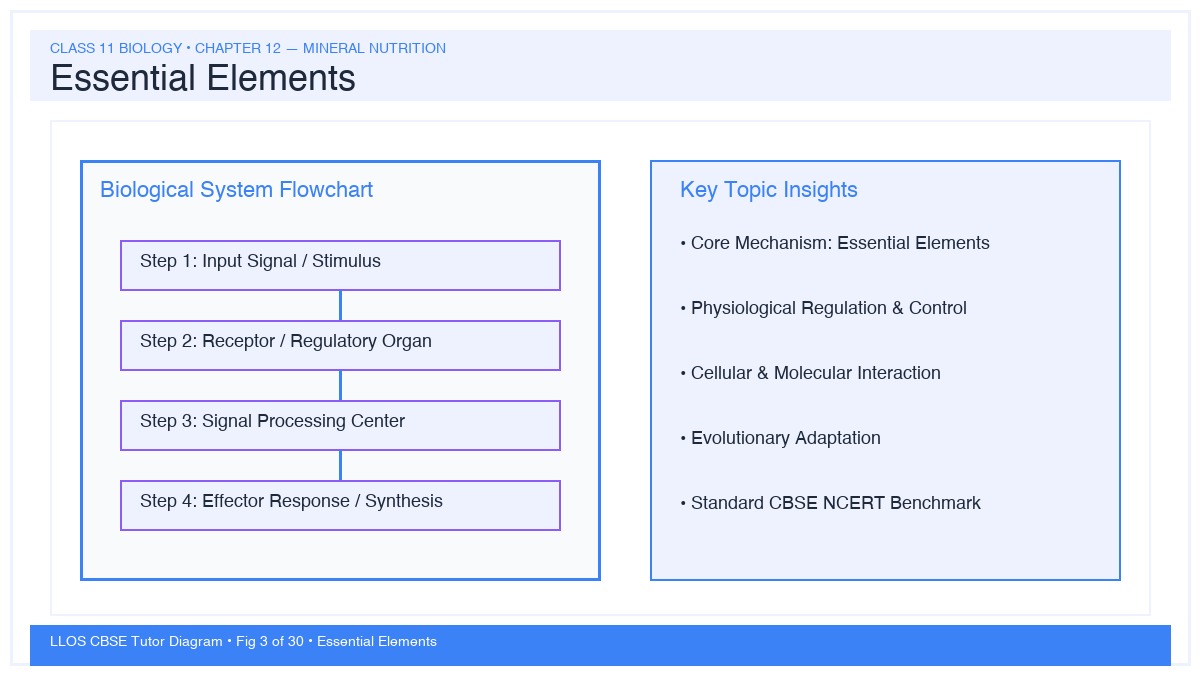

Fig 3 — Educational Diagram: Essential Elements

Definition: Essential elements are chemical elements that a plant requires to complete its life cycle, to perform a specific metabolic function that cannot be replaced by another element, and without which the plant cannot complete reproduction.

Criteria of essentiality (Arnon):

• The element is needed for the plant to complete its life cycle.
• A specific function of the element can be identified.
• Its role cannot be replaced by another element.

Classification:

• Macronutrients (required in larger amounts):
  • Primary: Nitrogen (N), Phosphorus (P), Potassium (K)
  • Secondary: Calcium (Ca), Magnesium (Mg), Sulfur (S)
• Micronutrients (required in trace amounts): Iron (Fe), Manganese (Mn), Zinc (Zn), Copper (Cu), Boron (B), Molybdenum (Mo), Chlorine (Cl), Nickel (Ni)

General roles (short):

• N: component of amino acids, proteins, chlorophyll, nucleic acids; growth and leaf development.
• P: energy transfer (ATP), nucleic acids, phospholipids; root development, flowering.
• K: osmotic balance, stomatal movement, enzyme activation; stress tolerance.
• Ca: cell wall stability (pectate cross-linking), membrane integrity, signalling.
• Mg: central atom of chlorophyll, enzyme cofactor (ATP reactions).
• S: component of certain amino acids (cysteine, methionine) and vitamins.
• Fe: electron transport (cytochromes), chlorophyll synthesis; often causes interveinal chlorosis in young leaves when deficient.
• B: cell wall structure, pollen germination and tube growth.
• Mo: required for nitrate reduction and nitrogen fixation (nitrogenase activity).

Uptake forms & soil factors:

• Common inorganic forms taken by roots: NO3−, NH4+, H2PO4−/HPO4 2−, K+, Ca2+, Mg2+, SO4 2−, Fe2+/Fe3+, Mn2+, Zn2+, Cu2+, Cl−, BO3 3−/H3BO3, MoO4 2−.
• Soil pH strongly affects availability: e.g., P is least available at very acidic or alkaline pH; Fe and Mn are more available in acidic soils; Mo availability increases with pH.
• Biological associations (mycorrhizae, rhizobia) increase uptake of P and N respectively.

Mobility in plant:

• Mobile elements (retranslocated to young tissues): N, P, K, Mg.
• Immobile elements (deficiency symptoms appear first in new leaves): Ca, B, Fe (Fe is immobile in many species).

Deficiency vs toxicity: Each element has characteristic deficiency symptoms (e.g., N – overall chlorosis and stunted growth; P – dark green leaves, poor root growth; K – marginal leaf chlorosis and necrosis; Ca – blossom end rot in tomato; Mg – interveinal chlorosis on older leaves). Excess of some elements (e.g., Na, Cl, excessive Mn or Fe) causes toxicity and reduced growth.

Practical importance:

• Balanced fertilization (NPK + secondary and micronutrients) is necessary for optimum crop yields.
• Soil testing and foliar nutrient sprays correct specific deficiencies (ZnSO4, Fe chelates, borax, Mo fertilizers, gypsum for Ca).
• Biological methods: crop rotation with legumes (Rhizobium) and use of mycorrhizal inoculants improve nutrient supply and sustainability.

Concise takeaway: Essential elements differ in amount required but each has unique roles; understanding their forms, mobility and soil interactions helps diagnose deficiencies and manage fertilization for healthy plant growth.

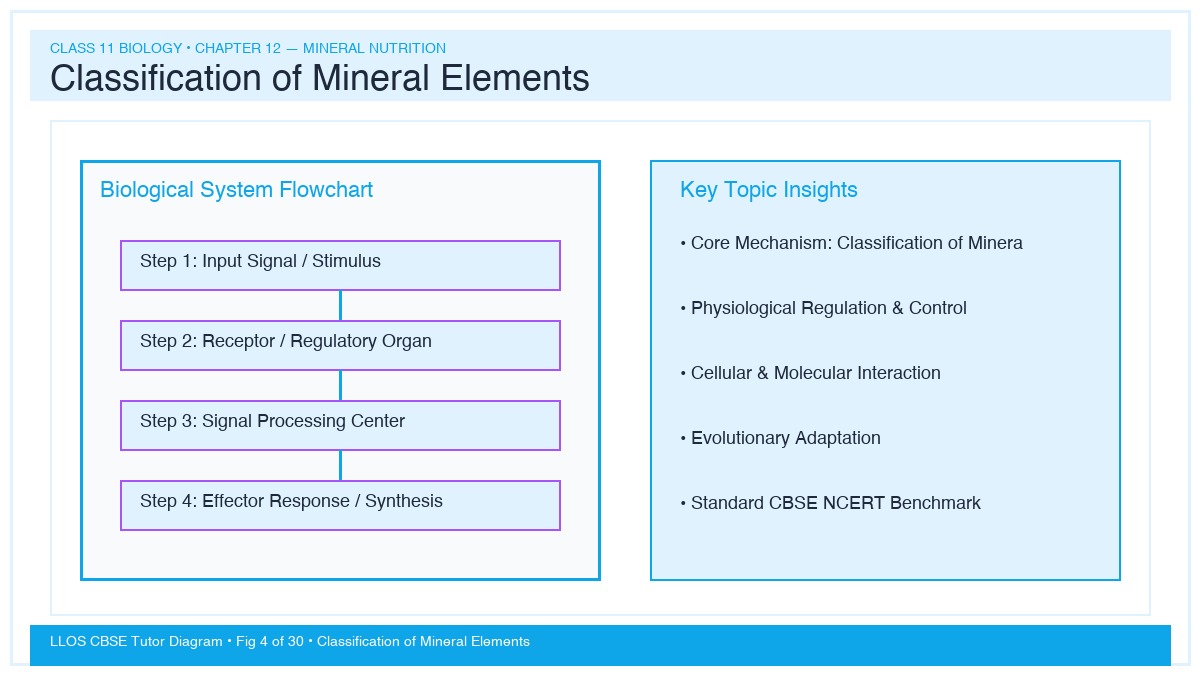

Fig 4 — Educational Diagram: Classification of Mineral Elements

What are mineral elements? Mineral elements (or mineral nutrients) are inorganic elements absorbed by plants from soil or solution and required for normal growth and reproduction. An element is considered essential when: (1) it is necessary for plant growth and reproduction, (2) its function cannot be replaced by another element, and (3) it is directly involved in plant metabolism.

Basic classifications

• By amount required (macronutrients vs micronutrients)
  • Macronutrients (required in large amounts):
    • Primary: Nitrogen (N), Phosphorus (P), Potassium (K)
    • Secondary: Calcium (Ca), Magnesium (Mg), Sulfur (S)
  • Micronutrients (required in trace amounts): Iron (Fe), Manganese (Mn), Zinc (Zn), Copper (Cu), Molybdenum (Mo), Boron (B), Chlorine (Cl), Nickel (Ni)
• By function
  • Structural components: Ca (cell wall stability), Mg (central atom of chlorophyll), S (in amino acids cysteine & methionine)
  • Cofactors / catalytic roles: Fe, Mn, Zn, Cu, Mo act as enzyme cofactors in redox reactions, nitrogen fixation and other pathways
  • Osmoregulation & charge balance: K controls stomatal movement and osmotic potential; Cl participates in osmotic balance and photosystem II
  • Constituents of important molecules: P in ATP, nucleic acids and phospholipids; N in amino acids, proteins, nucleic acids
• By mobility within plant
  • Mobile elements: N, P, K, Mg — deficiency symptoms appear first on older leaves (plant remobilizes these nutrients to new growth)
  • Immobile elements: Ca, B, Fe — deficiency symptoms appear first on younger leaves or growing points

How plants take up mineral elements

• Most minerals are absorbed as ions (NO3-, NH4+, PO4^3-, K+, Ca2+, Mg2+, SO4^2-, Cl- etc.) via root hairs and transported through xylem with transpiration stream.
• Uptake follows saturation kinetics (carrier-mediated transport) and can be described qualitatively by Michaelis–Menten behaviour: uptake rate increases with external concentration then plateaus.
• Soil factors (pH, redox, organic matter, texture) affect availability: e.g., Fe becomes less available in alkaline soils causing chlorosis.

Deficiency vs toxicity

• Deficiency symptoms include chlorosis, necrosis, stunted growth, poor fruit/seed set — location depends on element mobility.
• Excess of some elements (Na+, heavy metals) is toxic and interferes with uptake of essential nutrients.

Experimental basis Hydroponic culture or nutrient solutions (e.g., Hoagland solution) are used to show essentiality by omitting one element at a time and observing growth effects.

Summary table (short)

• Macronutrients: N, P, K, Ca, Mg, S — needed in larger amounts; basic structural and metabolic roles.
• Micronutrients: Fe, Mn, Zn, Cu, Mo, B, Cl, Ni — needed in trace amounts; mainly catalytic/cofactor roles.

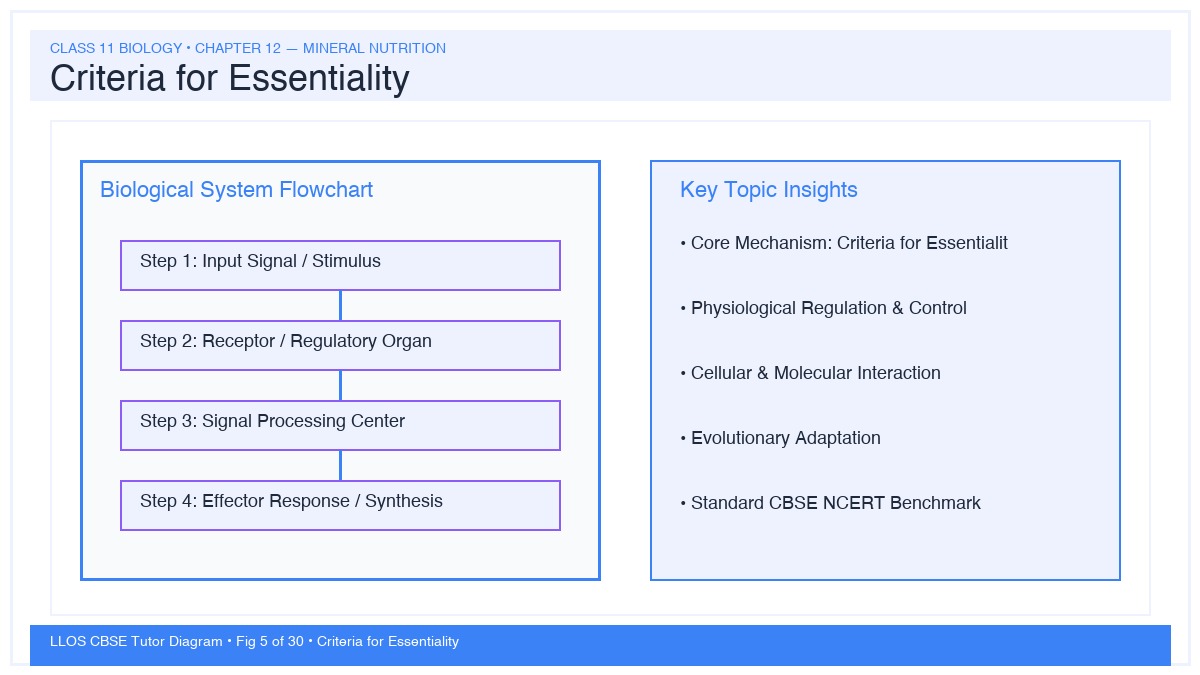

Fig 5 — Educational Diagram: Criteria for Essentiality

Definition: An element is considered essential for a plant if it satisfies specific criteria showing that the element is required for the plant to complete its life cycle and has a unique, irreplaceable metabolic role.

Standard criteria (commonly cited from Arnon & Stout):

• 1. Mandatory for completion of life cycle: Without the element the plant cannot complete its life cycle (germination → flowering → seed formation). In controlled culture (e.g., hydroponics), omission of the element leads to failure of reproduction or death.
• 2. Function cannot be replaced: The deficiency effects cannot be prevented or reversed by supplying another element. The element has a specific role that other elements cannot substitute.
• 3. Direct metabolic role: The element must be directly involved in plant metabolism (structural component of a molecule, cofactor of an enzyme, part of chlorophyll, etc.), not just acting indirectly (for example as a contaminant).

How criteria are tested experimentally:

• Hydroponic or nutrient solution cultures: Plants are grown in defined nutrient solutions (e.g., Hoagland solution). By omitting one element at a time and keeping all others adequate, researchers observe whether plants fail to grow or reproduce — demonstrating criterion 1.
• Replacement tests: To test criterion 2, researchers attempt to supply alternative ions or elements; if symptoms persist despite substitutes, the element is irreplaceable.
• Biochemical/physiological evidence: To satisfy criterion 3, experiments show the element is part of a specific molecule or enzyme (e.g., Mg in chlorophyll, Fe in cytochromes, Mo in nitrogenase).

Notes and implications:

• Some elements are essential for all plants (e.g., C, H, O, N, P, K, S, Mg, Ca, Fe, etc.). Others may be essential only for certain species or groups (e.g., Na is essential for some C4 or halophytic plants).
• Modern evidence combines classical omission experiments with molecular/biochemical identification of element-specific functions.

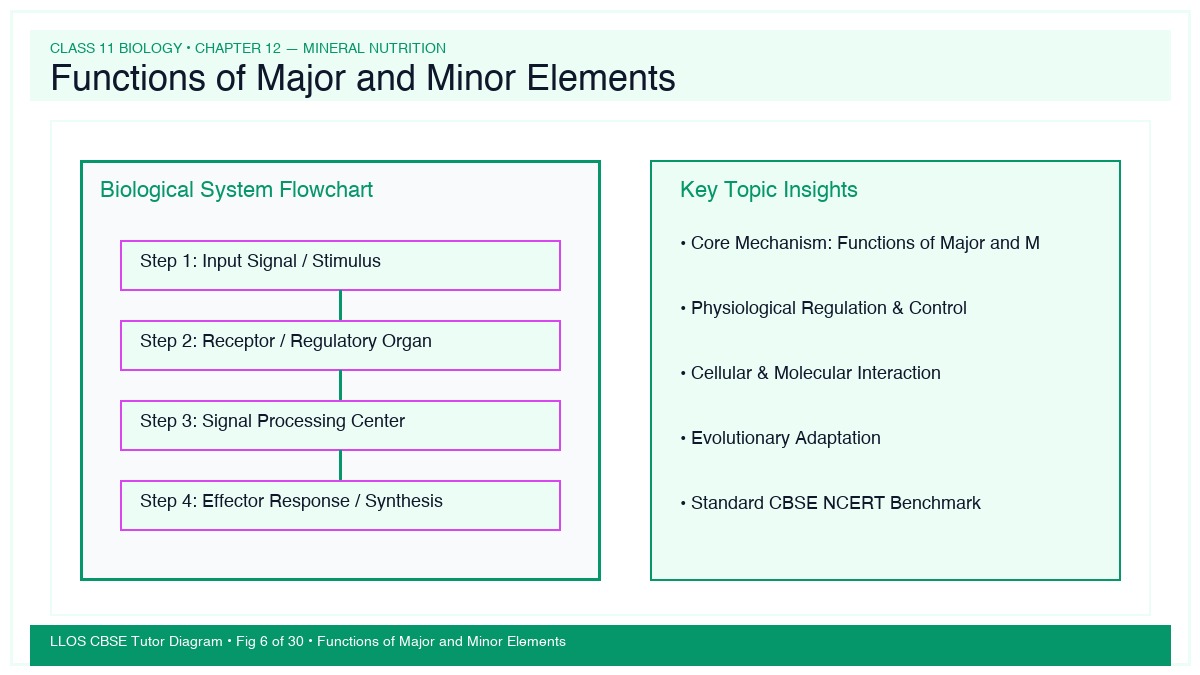

Fig 6 — Educational Diagram: Functions of Major and Minor Elements

Plants require a set of mineral elements that are grouped as major (macronutrients) and minor (micronutrients) based on the quantities needed. Major elements (primary macronutrients: N, P, K; secondary macronutrients: Ca, Mg, S) are needed in relatively large amounts and are involved in basic structural, metabolic and osmotic functions. Minor elements (Fe, Mn, Zn, Cu, B, Mo, Cl and others) are needed in trace amounts but are essential as enzyme cofactors, electron carriers and for reproductive processes.

• Nitrogen (N): Component of amino acids, proteins, nucleic acids and chlorophyll. Promotes vegetative growth and leaf expansion. Mobile in plant; deficiency → general chlorosis beginning in older leaves; excess → luxuriant vegetative growth, poor fruiting.
• Phosphorus (P): Component of ATP, nucleic acids and phospholipids; important for energy transfer, root development and flowering/seed formation. Deficiency → stunted growth, dark green or purplish leaves.
• Potassium (K): Regulates osmotic balance, stomatal movement, activates many enzymes, improves disease resistance and quality (sugar, protein). Deficiency → marginal scorching, weak stems, reduced stress tolerance.
• Calcium (Ca): Structural role in cell walls (pectate cross-linking), membrane stability, and cell division. Deficiency → distorted young tissues, blossom-end rot in tomato.
• Magnesium (Mg): Central atom of chlorophyll; cofactor for many enzymes. Deficiency → interveinal chlorosis of older leaves.
• Sulfur (S): Component of some amino acids (cysteine, methionine) and vitamins; needed for protein synthesis. Deficiency → uniform chlorosis first in young leaves (S is less mobile).
• Iron (Fe): Essential for electron transport (cytochromes), Fe–S proteins and chlorophyll synthesis. Deficiency → interveinal chlorosis of young leaves (Fe immobile).
• Manganese (Mn): Activates enzymes in photosynthesis and respiration; involved in water-splitting in PSII. Deficiency → interveinal chlorosis, brown spots.
• Zinc (Zn): Activator of many enzymes, required for auxin synthesis and internode elongation. Deficiency → stunted growth, small leaves, short internodes.
• Copper (Cu): Component of oxidases and plastocyanin (electron transport). Deficiency → young leaves wilt, dieback of shoot tips.
• Boron (B): Important for cell wall formation, pollen tube growth and membrane function. Deficiency → poor flowering, fruit set, hollow stems or distorted growing points.
• Molybdenum (Mo): Cofactor for nitrate reductase and nitrogenase (in legumes). Deficiency → poor nitrate reduction, symptoms similar to N deficiency; in cauliflower, 'whiptail'.
• Chlorine (Cl): Involved in osmotic and ionic balance and photosynthetic reactions (oxygen-evolving complex). Deficiency → wilting and leaf necrosis (rare).

Functions can be classified as structural (Ca, Mg), metabolic/enzymatic activators (Mg, Mn, Zn, Cu), components of energy and genetic molecules (P, N), and osmotic/electrical regulation (K, Cl). Balanced supply is essential because excess or deficiency of one element can affect uptake and utilization of others (antagonism or synergism).

Practical plant nutrition uses this knowledge to select fertilizers (e.g., urea for N, DAP for P, muriate of potash for K), soil amendments (lime for Ca and pH correction, gypsum for S and Ca), and micronutrient sprays (e.g., zinc sulfate, borax, ferrous sulfate) to correct specific deficiencies.

Fig 7 — Educational Diagram: Deficiency Symptoms and Toxicity

Definition: Deficiency symptoms occur when a plant lacks a required mineral element and shows characteristic visual and physiological changes. Toxicity happens when one or more mineral elements are present in excess and impair plant growth or metabolism.

Causes: low total nutrient in soil, nutrient fixation (e.g., P fixation), unavailable chemical form (pH effects), poor root activity (waterlogging, cold), imbalanced fertilization, excessive salinity or heavy metals.

General symptom types: chlorosis (yellowing due to loss of chlorophyll), necrosis (tissue death, brown/black), stunted growth, reduced tillering/branching, malformed organs, delayed maturity and poor yield/quality.

Role of nutrient mobility: Mobility in the plant determines where symptoms appear first. Mobile nutrients (can be translocated to young tissues) show symptoms on older leaves first; immobile nutrients show symptoms on young leaves and growing points.

• Mobile: N, P, K, Mg, Cl, sometimes Zn (older leaves affected first).
• Immobile: Ca, Fe, B, Mn, Cu, S, Mo (young leaves, growing points affected first).

Key deficiency symptoms by nutrient (concise):

• N (Nitrogen): General chlorosis starting on older leaves, thin spindly plants, reduced leaf size and yield.
• P (Phosphorus): Dark green leaves, purpling of older leaves, poor root development, delayed maturity.
• K (Potassium): Marginal leaf chlorosis/necrosis (scorching), weak stems, poor fruit quality.
• Ca (Calcium): Death of meristematic tissues — distorted young leaves, blossom-end rot (tomato), bitter pit (apple).
• Mg (Magnesium): Interveinal chlorosis on older leaves, leaf cupping, premature leaf drop.
• S (Sulfur): General chlorosis first on young leaves (S is relatively immobile), stunting.
• Fe (Iron): Interveinal chlorosis on young leaves; common in alkaline/calcareous soils.
• Mn (Manganese): Interveinal chlorosis and brown spots on young leaves; can be similar to Fe deficiency.
• Zn (Zinc): Reduced leaf size, rosetting, interveinal chlorosis on young leaves, shortened internodes.
• B (Boron): Death of growing points, hollow stems, malformed fruits (e.g., cauliflower heart rot, sugar beet root splitting).
• Cu (Copper): Dieback of shoots, twisted young leaves, reduced pollen fertility.
• Mo (Molybdenum): Pale young leaves, whiptail in cauliflower, nitrogen metabolism defects (since Mo is needed for nitrate reduction).
• Cl (Chlorine): Wilting, marginal leaf necrosis; deficiency rare.

Toxicity: Micronutrients and some macronutrients become toxic at high concentrations. Symptoms include bronzing, chlorosis, necrotic spots, root growth inhibition and reduced yield. Common toxicity situations:

• Aluminium (Al3+): In acid soils (pH < 5.5) Al3+ solubilises — causes root tip damage, short roots, poor water and nutrient uptake.
• Iron and Manganese: In waterlogged or strongly acidic soils these accumulate in tissues causing brown spots, necrosis and chlorosis.
• Sodium (salinity) and Chloride: High soil salt causes marginal leaf burn, wilting, osmotic stress and ion toxicity; common in irrigated/arid areas.
• Copper, Zinc: Industrial contamination or over-fertilization causes chlorosis, stunting and root damage.

Diagnosis and management: Inspect symptom pattern (older vs younger leaves), soil and tissue testing (ppm or %), consider soil pH, correct with balanced fertilization (NPK and micronutrients), lime acid soils to reduce Al and increase availability of Mo and P, apply chelated micronutrients or foliar sprays for quick correction, gypsum or organic matter to ameliorate sodic soils, avoid over-application to prevent toxicity.

Conceptual principle: Liebig's Law of the Minimum — plant growth is limited by the scarcest essential nutrient relative to needs; both deficiency and excess (toxicity) deviate growth from the optimum.

Fig 8 — Educational Diagram: Functions of Macronutrients

Definition & classification
Macronutrients are mineral elements required by plants in relatively large amounts. In CBSE Class 11 context they are grouped as primary macronutrients (Nitrogen, Phosphorus, Potassium — N, P, K) and secondary macronutrients (Calcium, Magnesium, Sulfur — Ca, Mg, S). They function as structural components, metabolic cofactors, osmotic agents and participants in energy and signal transduction.

General functions

• Structural components of biomolecules: proteins, nucleic acids, phospholipids and chlorophyll.
• Energy transfer and storage: phosphate groups in ATP and nucleotides.
• Enzyme activation and cofactor roles: many enzymes require metal ions (Mg2+, K+, Ca2+).
• Osmotic regulation and stomatal movement: mainly K+ controls guard cells and water relations.
• Cell wall and membrane stability: Ca2+ stabilises pectin in middle lamella; Mg2+ and S contribute to membrane and protein structure.
• Redox and N-assimilation: N in amino acids and chlorophyll; S in sulphur-containing amino acids and coenzymes.

Key macronutrients — functions & notes

• Nitrogen (N): Component of amino acids, proteins, nucleic acids and chlorophyll. Promotes vegetative growth and leaf development. Mobile in plant — deficiency shows in older leaves as chlorosis and stunted growth.
• Phosphorus (P): Part of ATP, ADP, nucleic acids, phospholipids; essential for energy transfer, respiration, flowering, root development and seed formation. Moderately mobile — deficiency causes dark green or purpling of leaves and poor root/flower development.
• Potassium (K): Osmotic regulator, enzyme activator, needed for stomatal function, translocation of sugars, stress resistance (drought, cold), and improving fruit quality. Mobile — deficiency causes marginal chlorosis and weak stems.
• Calcium (Ca): Structural role in cell walls (pectate cross-linking), membrane stability and intracellular signalling (Ca2+ second messenger); important in cell division and root/shoot meristem function. Relatively immobile — deficiency appears in young tissues (e.g., blossom end rot in tomato).
• Magnesium (Mg): Central atom of chlorophyll; cofactor for many ATP-dependent enzymes; essential for carbohydrate partitioning and chlorophyll synthesis. Mobile — deficiency shows interveinal chlorosis in older leaves.
• Sulfur (S): Component of amino acids cysteine and methionine, vitamins (biotin, thiamine) and cofactors; required for protein synthesis and some redox reactions. Less mobile than N — deficiency appears first in young leaves as uniform chlorosis.

Uptake and forms

• Plants absorb macronutrients mainly as ions: nitrate (NO3-), ammonium (NH4+), phosphate (H2PO4-/HPO4(2-)), potassium (K+), calcium (Ca2+), magnesium (Mg2+), sulfate (SO4(2-)).
• Uptake depends on concentration gradients, root surface area, mycorrhizal associations (especially for P), soil pH and cation-exchange capacity.

Practical importance

• Balanced N-P-K and secondary nutrient supply are essential for optimal yield, quality and stress resistance.
• Over-application causes toxicity, nutrient imbalance and environmental pollution (e.g., nitrate leaching, eutrophication).

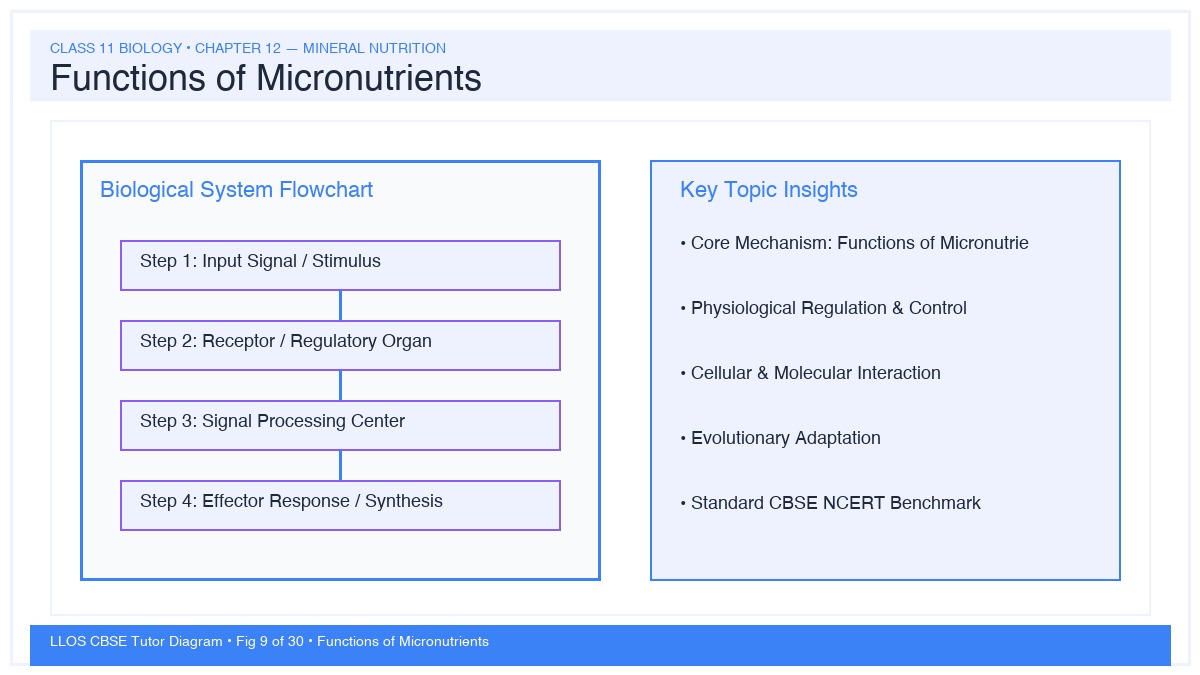

Fig 9 — Educational Diagram: Functions of Micronutrients

Overview: Micronutrients are elements required by plants in very small amounts (usually ppm = mg kg⁻¹) but they are essential for normal growth and metabolism. Major plant micronutrients include Iron (Fe), Manganese (Mn), Zinc (Zn), Copper (Cu), Boron (B), Molybdenum (Mo), Chlorine (Cl) and Nickel (Ni). Their roles are mostly catalytic or regulatory — many act as cofactors of enzymes, components of electron-transfer proteins, or structural elements of cell walls and membranes.

Common functions (general):

• Activation of enzymes: Many micronutrients bind to enzyme active sites and are required for catalytic activity (e.g., Zn, Mn, Cu).
• Electron transfer and redox chemistry: Fe and Cu are components of cytochromes and other redox proteins in respiration and photosynthesis.
• Cofactors in nitrogen metabolism: Mo is essential for nitrate reductase and nitrogenase; Ni is essential for urease.
• Cell wall and membrane integrity: Boron helps cross-link cell-wall pectins and stabilise membranes; Cl contributes to ionic balance.
• Regulation of growth hormones and carbohydrate metabolism: Zn influences auxin synthesis and gene expression.
• Photosynthetic water-splitting and oxygen evolution: Mn is part of the oxygen-evolving complex (OEC) of Photosystem II.

Individual micronutrient roles & typical deficiency effects:

• Iron (Fe): Required for synthesis of cytochromes, ferredoxin and other electron carriers; indirectly needed for chlorophyll synthesis. Deficiency → interveinal chlorosis especially of young leaves (Fe is relatively immobile).
• Manganese (Mn): Activates enzymes in photosynthesis, respiration and nitrogen metabolism; essential in the OEC of PSII. Deficiency → interveinal chlorosis and brown necrotic spots.
• Zinc (Zn): Activates over 200 enzymes, needed for auxin (IAA) synthesis and protein metabolism; controls internode elongation. Deficiency → stunted growth, reduced leaf size, rosetting and chlorosis.
• Copper (Cu): Part of plastocyanin and oxidases; involved in electron transport, lignin synthesis and reproduction. Deficiency → dieback of young shoots, reduced pollen viability.
• Boron (B): Important in cell-wall structure (pectin cross-linking), membrane function, sugar transport, pollen tube growth and seed development. Deficiency → death of growing points, poor fruit/seed set, brittle tissues.
• Molybdenum (Mo): Component of molybdoenzymes (nitrate reductase, nitrogenase). Deficiency → impaired nitrate reduction, general chlorosis, stunted growth; symptoms often appear in older leaves first.
• Chlorine (Cl): Involved in osmotic and ionic balance, photosynthetic water-splitting, and stomatal function. Deficiency → wilting, marginal chlorosis and reduced growth.
• Nickel (Ni): Required for urease (urea hydrolysis) and important in seed germination and nitrogen metabolism. Deficiency → accumulation of urea and poor N remobilization.

Practical notes:

• Micronutrient deficiencies are often soil-related (pH, high CaCO₃, organic matter, redox state) and can be corrected by foliar sprays, soil application of chelates (e.g., Fe-EDTA) or addition of specific salts in recommended doses.
• Excess of a micronutrient is toxic; the plant response curve versus concentration shows deficiency → optimum → toxicity zones.
• Mobility in the phloem varies: Fe and B are relatively immobile so deficiency symptoms first appear on young tissues; Mn, Zn and others are more mobile and affect older leaves first (species-dependent).

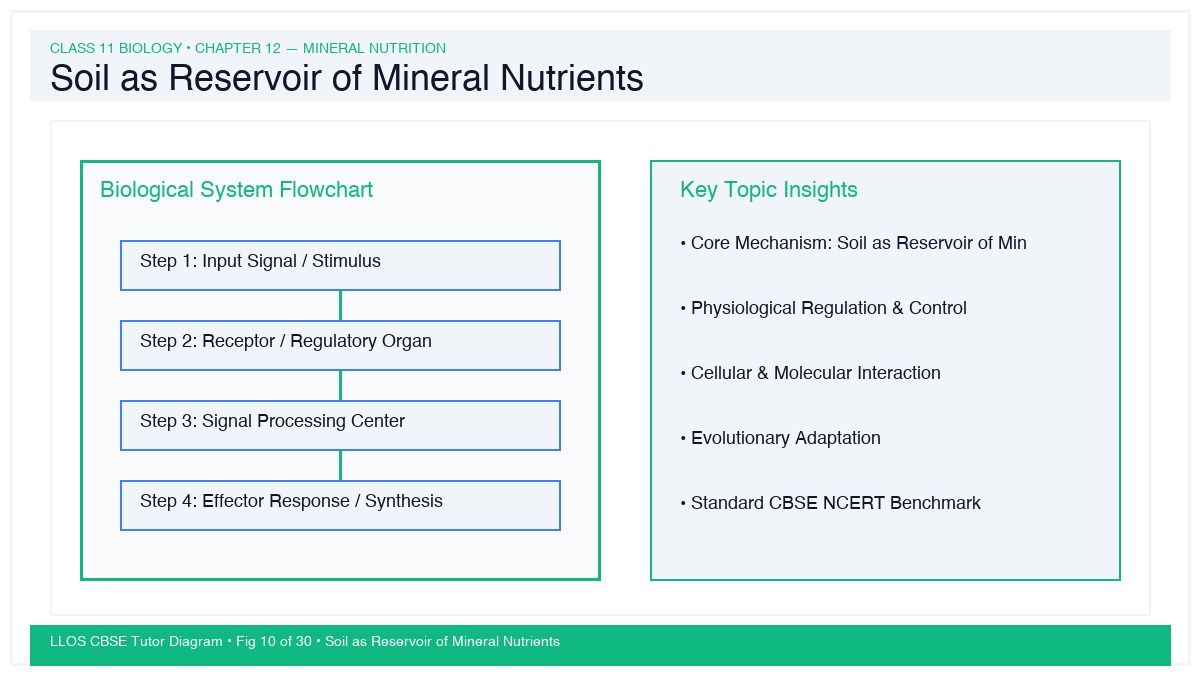

Fig 10 — Educational Diagram: Soil as Reservoir of Mineral Nutrients

What it means
Soil acts as the main reservoir of mineral nutrients required by plants. Nutrients occur in different pools: dissolved in soil solution (readily available), adsorbed on colloids or exchange sites (exchangeable), bound in organic matter (organic forms) and locked in primary and secondary minerals (non-available or slowly available). Plants obtain most ions from the soil solution while exchangeable and mineral pools replenish the solution.

Key soil components that store nutrients
Mineral particles (sand, silt, clay), organic matter and clay–humus colloids are the most important storage sites. Clay and humus carry negative charges that attract and hold cations (e.g., K+, Ca2+, Mg2+, NH4+). Anions (e.g., NO3-, PO43-) are less strongly held and are more prone to leaching.

Major processes controlling nutrient availability
- Weathering: breakdown of primary minerals releases nutrients slowly (e.g., K from micas).
- Mineralization: microbial decomposition of organic matter converts organic N, P, S into inorganic plant-available forms (NH4+, NO3-, PO43-).
- Immobilization: microbes temporarily incorporate inorganic nutrients into organic biomass, reducing availability.
- Adsorption/desorption and Cation Exchange: nutrients are held on exchange sites and can be released to the soil solution when needed. Cation exchange capacity (CEC) quantifies this ability.
- Fixation: some nutrients become chemically fixed (e.g., K fixation in certain clays, P precipitation) and are not available to plants.
- Leaching: soluble ions (especially NO3-) can be washed below the root zone by water percolation, leading to losses.

Effect of pH
Soil pH strongly controls nutrient availability. Most macronutrients are available in near-neutral pH. Low pH (acidic soil) increases availability of micronutrients like Fe, Mn, Al (can be toxic at very low pH) and reduces availability of P. High pH (alkaline soil) reduces availability of Fe, Mn, Zn and causes P to precipitate as calcium phosphates.

Role of organic matter
Organic matter improves nutrient reserve by: supplying nutrients on decomposition (mineralization), increasing CEC (thus retaining cations), improving soil structure and moisture retention (reducing leaching), and chelating micronutrients to keep them plant-available.

Management implications
To maintain soil as an effective nutrient reservoir: apply balanced fertilizers based on soil tests, add organic amendments (compost, manure, green manures), manage pH (lime acidic soils), adopt practices to reduce erosion and leaching (cover crops, appropriate irrigation), and use crop rotations that recycle nutrients.

Simple conceptual diagram suggestions (for classroom)
Show a layered soil cross-section with: soil solution (ions near roots), clay–humus colloids with adsorbed cations, organic matter being decomposed by microbes, mineral grains weathering to release nutrients, plus arrows for processes: mineralization, adsorption/desorption, leaching, root uptake.

Fig 11 — Educational Diagram: Mechanisms of Mineral Uptake

Overview: Plants acquire mineral ions from the soil by a combination of passive physical processes and selective membrane-mediated transport. Uptake occurs mainly through root hairs and involves two primary pathways inside the root: the apoplast (cell walls and intercellular spaces) and the symplast (cytoplasm connected by plasmodesmata). The endodermis with its Casparian strip forces ions entering the stele to cross a plasma membrane, enabling selective control.

Passive processes: These do not require metabolic energy. Key passive mechanisms are

• Diffusion: movement down a concentration gradient (short distances across membranes or cell walls).
• Mass flow: movement of dissolved ions with the bulk flow of water driven by transpiration; important for Ca2+ and Mg2+.
• Ion exchange on soil colloids: roots alter rhizosphere chemistry (e.g., H+ release displacing bound cations).

Active and facilitated transport (energy-dependent, selective):

• Primary active transport: H+-ATPase (proton pump) in the plasma membrane hydrolyses ATP to pump H+ out of cells, creating an electrochemical proton gradient (membrane potential negative inside).
• Secondary active transport: the H+ gradient drives symporters (H+/NO3-, H+/PO4-, H+/sugar) and antiporters (H+/Na+), importing ions against their concentration gradients without directly using ATP.
• Ion channels allow rapid passive flow of specific ions (e.g., K+) down electrochemical gradients; gating confers regulation.
• Carrier proteins/transporters show saturation kinetics (limited Vmax) and substrate specificity—important for low-concentration uptake.

Control and selectivity: The Casparian strip forces membrane crossing for xylem loading, enabling selective uptake and retrieval of ions. Transporter expression is regulated by nutrient status (e.g., high-affinity transporters induced under deficiency). Membrane potential and cytosolic feedbacks determine uptake rates.

Role of symbioses: Mycorrhizae (fungal associations) increase absorptive surface and secrete enzymes/chelate organic P, greatly enhancing phosphorus and micronutrient uptake—important in nutrient-poor soils.

Specialized strategies: Plants show adaptations for certain ions: dicots (Strategy I) acidify the rhizosphere and reduce Fe3+ to Fe2+ for uptake; grasses (Strategy II) release phytosiderophores that chelate Fe3+ for import.

Environmental factors: Soil pH, redox potential, cation exchange capacity, temperature and transpiration influence availability and rates of uptake. Agricultural practices (fertilizers, liming) modify rhizosphere chemistry and uptake dynamics.

Net result: Mineral nutrition is an integrated outcome of physical transport, membrane energetics (H+-ATPase), specific transport proteins, root architecture (root hairs, lateral roots, mycorrhizae), and environmental context.

Fig 12 — Educational Diagram: Soil as a Source of Minerals

Overview
Soil is the main reservoir of mineral nutrients used by plants. It is a heterogeneous mixture of mineral particles, organic matter (humus), water and air. Minerals required by plants occur in soil in three main forms: (1) as solid primary and secondary minerals in soil particles, (2) adsorbed on colloids (clay and humus) and (3) dissolved in the soil solution. Only the dissolved fraction is directly available for root uptake.

Soil composition and important physical components
Soil texture (proportions of sand, silt, clay) and structure control water retention, aeration and surface area for adsorption. Clay and organic colloids have large surface area and carry negative charges that bind cations (e.g., K+, Ca2+, Mg2+, NH4+) by electrostatic adsorption. This reversible binding is called cation exchange and is quantified by the cation exchange capacity (CEC).

Forms of plant nutrients in soil
- Macronutrients: N (as NO3⁻, NH4⁺), P (as H2PO4⁻, HPO4²⁻), K⁺, Ca²⁺, Mg²⁺, S (as SO4²⁻).
- Micronutrients: Fe, Mn, Cu, Zn, B, Mo, Cl (present as ions or complexed forms).
Availability depends on soil pH, redox status, organic matter and interactions with minerals (e.g., phosphate may precipitate with Fe/Al in acidic soils).

Mechanisms by which minerals reach roots
Plants obtain dissolved ions from the soil solution by three principal physical processes:

• Mass flow — transport of nutrients in the water stream toward the root driven by transpiration. Important for nitrate, sulfate, calcium.
• Diffusion — movement down a concentration gradient from bulk soil to the depleted zone around the root. Important for less mobile ions such as phosphate and potassium.
• Root interception — root growth physically encounters soil particles and their adsorbed nutrients.

Role of soil pH and chemical reactions
Soil pH strongly controls nutrient solubility: acidic soils (low pH) may make Al and Mn toxic and render P unavailable by fixation with Fe/Al oxides; alkaline soils (high pH) make micronutrients like Fe, Mn, Zn less available and increase risk of CaCO3 precipitation. Organic acids released by roots and microbes, and microbial activity, modify local pH and chelate nutrients, enhancing availability.

Biological influences
Soil organisms greatly influence mineral availability. Mycorrhizal fungi extend hyphae beyond the root depletion zone to access immobile nutrients (especially phosphate). Nitrogen-fixing bacteria (e.g., Rhizobium in legumes) convert atmospheric N2 to plant-usable ammonia/NH4+, altering local N supply. Decomposers mineralize organic N and P, releasing inorganic ions into the soil solution.

Losses and management
Nutrients are lost from soil by leaching (mobile anions like NO3⁻), erosion, volatilization (e.g., NH3 from urea at high pH) and fixation (e.g., very strong adsorption of P). Agricultural practices (fertilizer addition, liming acidic soils, adding organic matter, crop rotation with legumes, using mycorrhizal inoculants) are used to maintain or improve soil mineral availability.

Key practical points for farmers/gardeners
- Sandy soils have low CEC and poor nutrient retention—fertilizers leach quickly.
- Clayey and organic-rich soils have high CEC and better nutrient holding capacity.
- Liming acidic soils raises pH, often increasing availability of P and decreasing toxic Al3+.
- Applying rock phosphate or organic amendments and encouraging mycorrhizae helps P-deficient soils.

Summary
Soil supplies minerals in dissolved form to roots. The supply rate depends on soil texture, CEC, pH, biological activity and physical transport processes (mass flow, diffusion, root interception). Effective soil and crop management optimize these factors to ensure plant nutritional needs are met.

Fig 13 — Educational Diagram: Chemical Forms and Availability of Nutrients

Overview
Plants absorb nutrients mostly in inorganic ionic or simple molecular forms from soil solution. The chemical form a nutrient takes in soil and the soil conditions (pH, redox, texture, organic matter, microbial activity) determine its availability to plants.

Chemical forms of important nutrients and notes on availability

• Nitrogen (N): inorganic forms taken up — nitrate (NO3–) and ammonium (NH4+). Organic N forms (amino acids, peptides) can be directly absorbed by some plants and microbes. Key transformations: mineralization (organic N → NH4+), nitrification (NH4+ → NO2– → NO3–), denitrification (NO3– → N2/ N2O), volatilization (NH4+ → NH3 gas).
• Phosphorus (P): present in soil as orthophosphate species: H2PO4– and HPO4^2– (equilibrium depends on pH). Plants mainly take up H2PO4– (acid to neutral soils) and HPO4^2– (slightly alkaline). Much P is fixed/adsorbed (with Al/Fe in acidic soils, with Ca in alkaline soils).
• Potassium (K): exists primarily as exchangeable K+ (available), water-soluble K+, and non-exchangeable (fixed) K in clay interlayers. Plants take up K+.
• Calcium (Ca) and Magnesium (Mg): taken up as Ca2+ and Mg2+; availability reduced in very acidic soils by Al3+ toxicity and in very saline soils by ionic imbalance.
• Sulfur (S): sulfate SO4^2– is the main plant-available form; organic S must be mineralized to SO4^2–.
• Micronutrients (Fe, Mn, Cu, Zn, Mo, B, Cl): typically available as soluble ions (Fe2+/Fe3+, Mn2+, Cu2+, Zn2+, MoO4^2–, H3BO3 (boric acid), Cl–). Availability strongly influenced by pH and redox conditions (e.g., Fe and Mn more soluble and potentially toxic under waterlogged/reducing conditions).

Factors controlling availability

• Soil pH: the most important factor. Many micronutrients (Fe, Mn, Zn, Cu, B) are more available at acidic pH; molybdenum becomes more available at alkaline pH. Phosphorus availability is maximal near neutral (~6.0–7.0) and declines in strongly acidic or alkaline soils due to fixation.
• Redox potential (Eh): waterlogging lowers Eh, reducing Fe3+ to Fe2+ and Mn4+ to Mn2+ (increasing their solubility).
• Soil texture and CEC: clay and organic matter increase cation exchange capacity (CEC), holding cations (K+, Ca2+, Mg2+, NH4+) and reducing leaching losses.
• Organic matter and microbial activity: supply and mineralization of nutrients (N, S), chelation of metals (increasing availability), immobilization into microbial biomass (reducing immediate availability).
• Interactions and antagonisms: high levels of one ion can inhibit uptake of another (e.g., excess K+ can suppress Mg2+ uptake). Some ions form insoluble compounds (P with Ca/Al/Fe).
• Temperature and moisture: influence microbial processes (mineralization/nitrification) and diffusion rates in soil.

Major processes affecting chemical forms

• Mineralization/immobilization: conversion between organic and inorganic forms by microbes.
• Nitrification and denitrification: control forms and loss of nitrogen.
• Adsorption/desorption and fixation: P adsorption onto Fe/Al oxides or Ca precipitation; K fixation in clay interlayers.
• Chelation/complexation: organic ligands (humic substances, synthetic chelates) bind metal ions (e.g., Fe-EDDHA) keeping them soluble and available to plants.
• Leaching and volatilization: losses of NO3– by leaching and NH3 by volatilization reduce availability.

Practical implications and management

• Adjust soil pH (liming acidic soils, sulfur to acidify alkaline soils) to optimize nutrient availability.
• Use organic matter (compost, green manure) to increase CEC, supply nutrients slowly, enhance chelation and microbial mineralization.
• Apply fertilizers in forms and timings that reduce losses (e.g., split N applications, banded P placement, use of nitrification inhibitors or urease inhibitors where needed).
• Use chelated micronutrients or foliar sprays for immediate correction of deficiencies (e.g., Fe-EDDHA for iron chlorosis in calcareous soils).
• Manage irrigation and drainage to avoid waterlogging (prevent Fe/Mn toxicity) or excessive leaching (prevent NO3– loss).

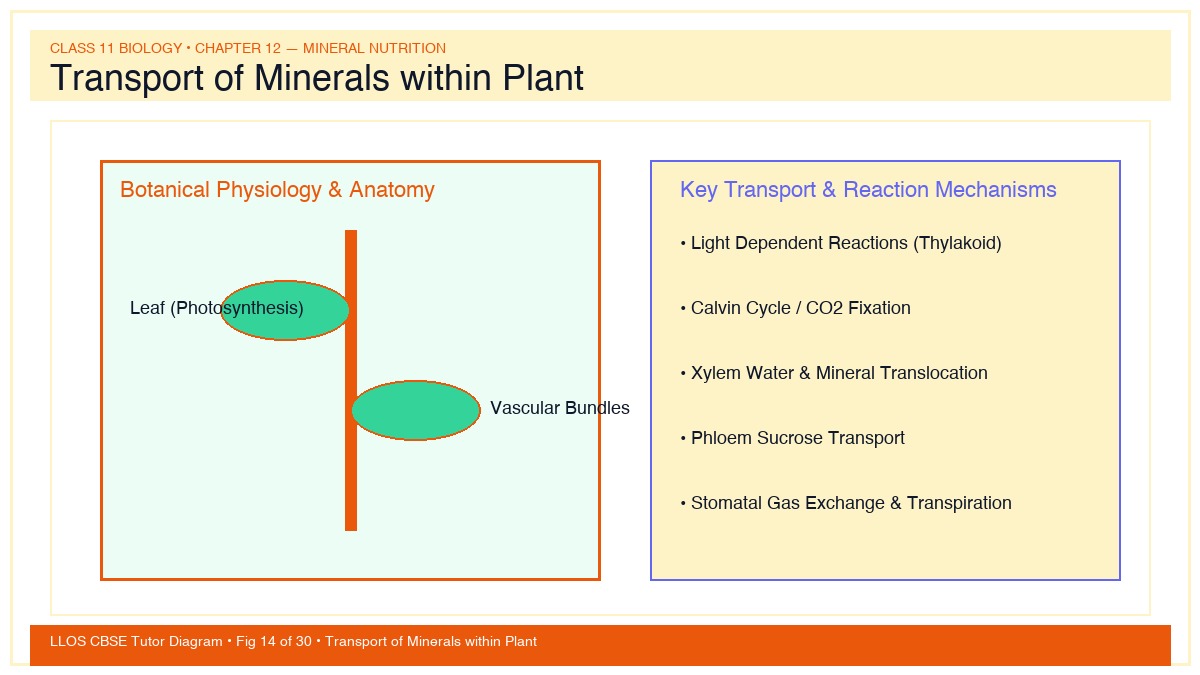

Fig 14 — Educational Diagram: Transport of Minerals within Plant

Overview
Transport of minerals within a plant means movement from soil into roots, across root tissues into the vascular system, and long‑distance distribution to shoots, leaves and storage organs. Processes include passive diffusion, facilitated transport and active transport (energy‑dependent), and bulk flow in xylem and phloem.

Pathways into and within root

• Apoplastic pathway: movement through cell walls and intercellular spaces without crossing membranes until blocked by the Casparian strip of the endodermis.
• Symplastic pathway: movement via the cytoplasm of cells connected by plasmodesmata (passes membrane once at root epidermis).
• Transmembrane pathway: repeated crossing of cell membranes (into and out of cells) — important for selective uptake.

Mechanisms of mineral uptake

• Passive transport: diffusion down electrochemical gradients through ion channels. No metabolic energy required.
• Facilitated transport: carrier proteins speed movement of ions down gradients; shows saturation kinetics.
• Active transport: carrier proteins (pumps) use ATP to accumulate ions against gradients. The H+‑ATPase (proton pump) is central: it pumps H+ out, creating membrane potential and proton gradient.
• Secondary active transport (co‑transport): H+ gradient drives uptake of ions via symport (e.g., H+/NO3– or H+/PO43–) or antiport.

Endodermis and Casparian strip
The Casparian strip (suberin) in the endodermis blocks apoplastic flow into the stele, forcing solutes to cross a membrane so the plant can selectively load ions into the xylem.

Loading into xylem and long‑distance transport

• Xylem loading: minerals reach xylem either via apoplast (then into xylem parenchyma) or symplast and are actively loaded into xylem vessels. Some ions are complexed (chelation) to aid solubility.
• Xylem transport: bulk flow driven by transpiration (cohesion‑tension theory). Water potential gradients pull water and dissolved mineral ions upward.
• Phloem redistribution: some minerals (especially mobile ones like nitrate, K) are loaded into phloem at source and translocated to sinks (growing tissues) by pressure‑flow (mass flow) mechanism.

Factors influencing mineral transport

• Soil concentration, pH (affects availability; e.g., P less available at very high or low pH), redox status, salinity (Na+ competes with K+), mycorrhizae presence (increase P uptake).
• Plant physiological state, transpiration rate (higher transpiration increases xylem flow and transport of less mobile elements), root surface area and root hairs.

Mineral mobility and deficiency symptoms
Nutrients are classified as mobile (e.g., N, P, K, Mg) or immobile (e.g., Ca, Fe, Mn). Mobile nutrients are translocated from older to younger leaves during deficiency, so older leaves show symptoms first; immobile nutrients cause deficiency in young tissues first (e.g., Ca causes blossom end rot in tomato).

Biological helpers
Mycorrhizal fungi extend effective root surface area and improve uptake of P and micronutrients. Rhizobial symbiosis fixes atmospheric N into forms plants can use.

Summary
Mineral transport is an integrated process: membrane transporters and pumps determine selectivity and concentration, while bulk flow in xylem/phloem distributes minerals to whole plant according to source–sink relations and transpiration demand.

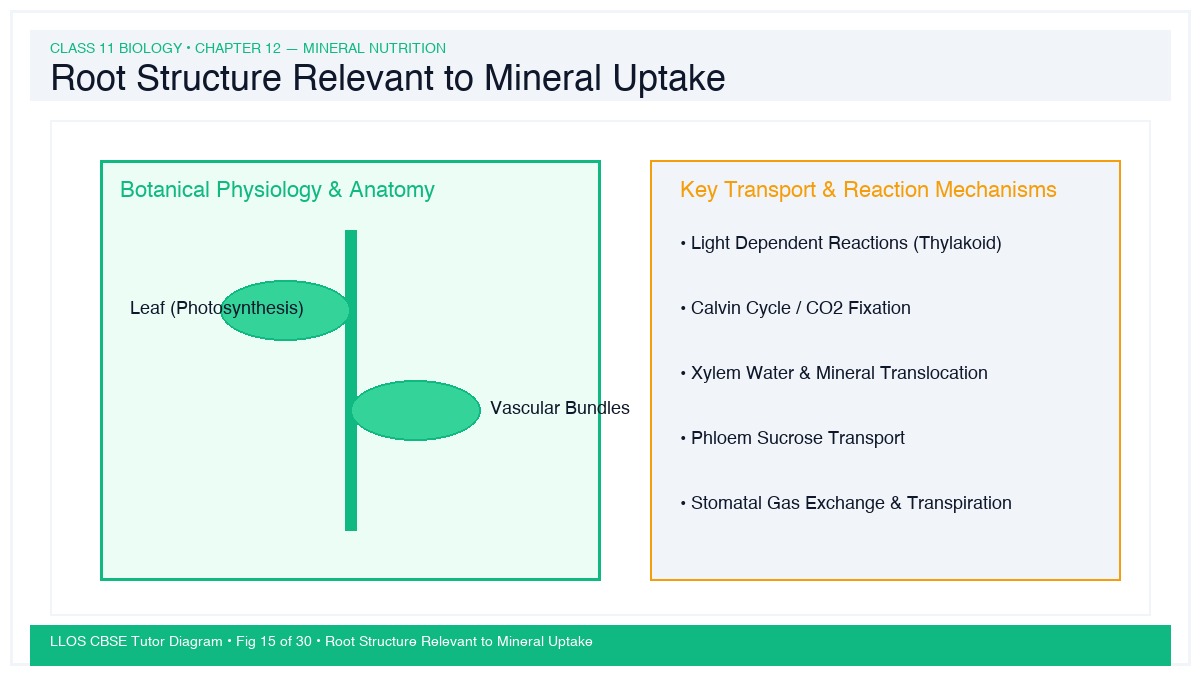

Fig 15 — Educational Diagram: Root Structure Relevant to Mineral Uptake

Overview: Roots are the primary organs for mineral uptake. Several specialized tissues and cell features in the root increase efficiency of ion and water absorption and control which ions enter the vascular system for upward transport.

Key structural features:

• Epidermis and root hairs: The epidermis of the absorption zone produces abundant root hairs—unicellular tubular outgrowths that greatly increase surface area and contact with soil solution. Root hairs are the main sites of mineral uptake in young roots.
• Cortex: Made of loosely packed parenchyma cells; it permits apoplastic movement of water and ions through cell walls and also serves temporary storage.
• Endodermis and Casparian strip: Endodermal cells have a Casparian strip (suberin) in radial and transverse walls that blocks the apoplastic flow of solutes into the stele. This forces ions to cross a plasma membrane (symplastic or transmembrane routes), enabling selective uptake and regulation.
• Pericycle: A layer inside the endodermis; origin of lateral roots and can play a role in ion compartmentalization and selective transport into the stele.
• Xylem and phloem: Xylem vessels transport absorbed minerals with transpiration stream upward to shoots; phloem can redistribute some solutes back to roots.
• Root cap and mucilage: Root cap secretes mucilage and sloughed cells that modify the rhizosphere, affecting ion availability and microbial interactions.

Pathways of movement into and across the root:

• Apoplast — through cell walls and intercellular spaces (fast) until blocked by Casparian strip.
• Symplast — through cytoplasm connected by plasmodesmata (regulated by membrane transporters).
• Transmembrane route — repeated crossing of plasma membranes (via channels, carriers, pumps).

Mechanisms of mineral uptake:

• Diffusion and mass flow — passive movement driven by concentration gradients and bulk flow of water (transpiration).
• Carrier-mediated transport — specific transport proteins (channels and carriers) facilitate selective uptake; displays saturation kinetics.
• Active transport — H+ ATPases pump protons out of root cells, generating electrochemical gradients used to drive uptake of cations and anions via symporters/antiporters (secondary active transport). Direct ATP-driven pumps also move some ions.

Role of mycorrhizae and microbes: Arbuscular mycorrhizal fungi form symbiotic associations with many plant roots, extending fungal hyphae into soil and improving uptake of immobile nutrients (notably phosphate). Rhizosphere microbes and root exudates alter pH and solubilize minerals (e.g., organic acids mobilize P).

Physiological consequences: The Casparian strip ensures selective entry of ions into the stele; proton pumps and transporters allow plants to take up nutrients even when external concentrations are low; mycorrhizae and root hairs increase effective absorptive surface and access to nutrient pools.

Fig 16 — Educational Diagram: Symbiotic Associations and Mineral Nutrition

Definition and importance
Symbiosis is a close and long-term biological interaction between two different organisms. In plants, many symbiotic associations (mutualistic) help improve mineral nutrition, especially for nutrients that are limiting in soils (nitrogen, phosphorus, and some micronutrients). These associations increase nutrient uptake efficiency, support plant growth, and are important in natural ecosystems and agriculture.

Major types of symbiotic associations affecting mineral nutrition

1. Rhizobium – legume symbiosis (root nodules)
Rhizobium (bacteria) infect roots of leguminous plants (pea, gram, soybean, clover) and form root nodules. Inside nodules, Rhizobium differentiate into bacteroids and fix atmospheric nitrogen (N2) into ammonia (NH3) by the enzyme nitrogenase. The plant supplies carbon sources and a low-O2 environment; leghemoglobin in nodules buffers oxygen to protect nitrogenase while providing O2 for respiration.

Key features:

• Infection via root hair curling → infection thread → cortical cells divide → nodule formation.
• Bacteroids carry out nitrogen fixation; fixed N is assimilated into amino acids (e.g., glutamine, glutamate).

2. Actinorhizal associations
Frankia (a filamentous actinobacterium) forms nodules on roots of non-leguminous woody plants (e.g., Alnus) and fixes N2 similarly to Rhizobium, improving soil fertility in pioneer habitats.

3. Cyanobacteria – plant/fungus associations
Cyanobacteria (e.g., Anabaena) form associations with aquatic ferns like Azolla and with some fungi and bryophytes. Azolla + Anabaena is used in rice paddies as a biofertilizer because the cyanobacterium fixes nitrogen.

4. Mycorrhizae (fungus–root associations)
Mycorrhizae are ubiquitous and help plants acquire phosphorus (P), water, and some micronutrients. Two important types:

• Ectomycorrhiza – fungal mantle around roots and Hartig net between cortical cells; common in many trees (pine, oak). Useful for N, P, and water uptake.
• Endomycorrhiza / Vesicular-Arbuscular Mycorrhiza (VAM) – fungal hyphae penetrate root cortical cells and form arbuscules and vesicles (Glomus and other Glomeromycota). Very effective at increasing phosphorus uptake in most crop plants and grasses.

5. Lichens
Lichens are symbioses between fungi and algae or cyanobacteria. They assist in weathering rocks, releasing mineral ions and initiating soil formation, indirectly contributing to mineral availability in ecosystems.

How symbioses improve mineral nutrition (mechanisms)

• Biological nitrogen fixation: conversion of atmospheric N2 → NH3 available to plants.
• Enhanced phosphorus uptake: fungal hyphae extend the root absorptive surface and mobilize immobile phosphate.
• Solubilization of minerals: some microbes secrete organic acids, siderophores, or phosphatases that solubilize Fe, P and other nutrients.
• Improved water uptake and root health: mycorrhizae increase soil contact and water absorption, indirectly aiding mineral transport by mass flow.
• Protection from pathogens and improved root growth: healthier roots absorb nutrients more effectively.

Biochemical assimilation of fixed nitrogen

Ammonia produced by nitrogenase is quickly assimilated by plant/bacterial enzymes via two major routes:

• Glutamine synthetase (GS): NH4+ + glutamate + ATP → glutamine + ADP + Pi
• Glutamate synthase (GOGAT): glutamine + α-ketoglutarate + NAD(P)H → 2 glutamate + NAD(P)+

Agricultural and ecological significance

• Biofertilizers: Rhizobium inoculants for legumes, Azolla in paddy, cyanobacterial/blue-green algal inoculants, and mycorrhizal inoculants increase yields and reduce chemical fertilizer use.
• Soil fertility restoration: Legumes and actinorhizal plants enrich soil N, aiding succession and reclamation.
• Reduced environmental impact: Lower synthetic N and P application reduces runoff and eutrophication.

Limitations and environmental factors

• Nitrogenase is O2-sensitive — requires specialized microenvironments (leghemoglobin, heterocysts in cyanobacteria).
• Soil pH, temperature, moisture, and nutrient imbalances affect establishment and efficiency of symbioses.
• Specificity: Rhizobium strains often nodulate only certain legumes; compatibility matters for inoculant success.

Summary
Symbiotic associations (Rhizobium, Frankia, cyanobacteria, mycorrhizae, lichens) play central roles in plant mineral nutrition by fixing atmospheric nitrogen, increasing phosphorus and micronutrient uptake, solubilizing minerals, and improving water relations. These interactions are vital for natural ecosystems and sustainable agriculture.

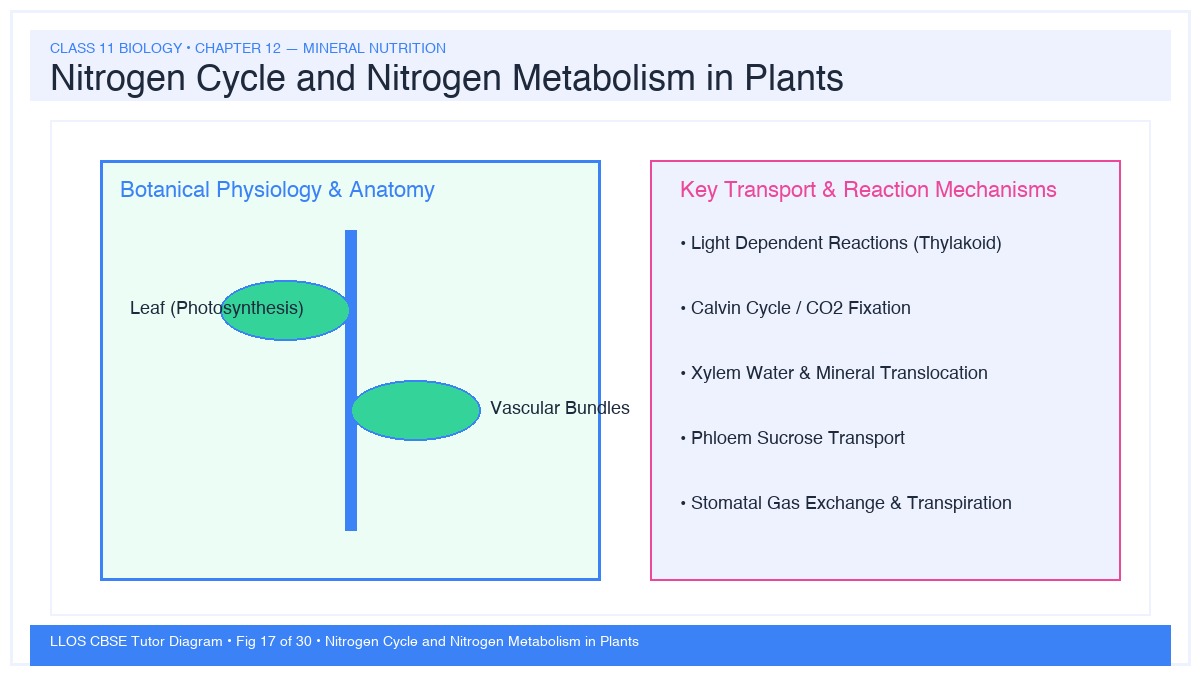

Fig 17 — Educational Diagram: Nitrogen Cycle and Nitrogen Metabolism in Plants

Overview: Nitrogen (N) is an essential element for amino acids, proteins, nucleic acids and chlorophyll. Although atmospheric N2 is abundant (~78%), most organisms cannot use N2 directly. The nitrogen cycle describes interconversion of N forms in nature; nitrogen metabolism in plants describes how plants take up inorganic N and convert it into organic compounds.

Major processes in the nitrogen cycle

• Nitrogen fixation: Conversion of atmospheric N2 to ammonia (NH3)/NH4+. Methods:
  • Biological fixation: Carried out by nitrogenase-containing microbes: free-living (Azotobacter, Clostridium), cyanobacteria (Anabaena, Nostoc), and symbiotic Rhizobium in legume root nodules. Nodules contain leghemoglobin to supply O2 at low concentrations, protecting nitrogenase.
  • Abiotic fixation: Lightning (forms NO3-) and industrial Haber–Bosch process (N2 + 3 H2 → 2 NH3) producing synthetic fertilizers.
• Ammonification (mineralization): Decomposition of organic N (proteins, nucleic acids, urea) by saprophytic microbes to produce NH3/NH4+ which enters soil inorganic N pool.
• Nitrification: Oxidation of NH4+ to NO2- and then to NO3- by chemoautotrophic bacteria in two steps:
  • Step 1 (Nitrosomonas): NH4+ → NO2-
  • Step 2 (Nitrobacter): NO2- → NO3-
  NO3- is mobile in soil and is the major form taken up by many plants.
  • Assimilation: Uptake of NO3- and/or NH4+ by plant roots and conversion into amino acids and other N-containing organic molecules (see Nitrogen metabolism below).
  • Denitrification: Under anaerobic conditions, facultative bacteria (Pseudomonas, Bacillus) reduce NO3- back to gaseous forms (NO, N2O, N2), returning N to the atmosphere and causing loss of soil N.

  Nitrogen metabolism in plants (assimilation pathway)

  • Uptake: Roots absorb nitrate (NO3-) or ammonium (NH4+). Many plants prefer nitrate; some (e.g., rice) tolerate more NH4+.
  • Nitrate reduction: Two-step enzymatic reduction before incorporation into amino acids:
    1. Nitrate reductase (in cytosol/plastids): NO3- + 2 e- + 2 H+ → NO2- + H2O
    2. Nitrite reductase (in plastids/chloroplasts): NO2- + 6 e- + 8 H+ → NH4+ + 2 H2O
    These reductions use reducing power (NADH/NADPH/ferredoxin), and nitrate reductase is often regulated by light and nitrate availability.
  • Incorporation into amino acids (GS–GOGAT pathway) — the primary route for ammonium assimilation:
    1. Glutamine synthetase (GS): NH4+ + L-glutamate + ATP → L-glutamine + ADP + Pi
    2. Glutamate synthase (GOGAT, also called glutamine:2-oxoglutarate aminotransferase): L-glutamine + 2-oxoglutarate + NAD(P)H → 2 L-glutamate + NAD(P)+
    Glutamate and glutamine act as amino group donors in transamination reactions to form other amino acids.
  • Transamination: Amino group transfer from glutamate to keto-acids (via aminotransferases) to form amino acids such as alanine and aspartate. Example: glutamate + oxaloacetate ⇌ aspartate + 2-oxoglutarate.
  • Special features of legume symbiosis: Rhizobium bacteria infect roots, form nodules and differentiate into bacteroids that fix N2 using nitrogenase (energy-intensive, ATP-dependent). Plants supply carbohydrates; bacteroids supply fixed N (usually as NH4+). Leghemoglobin keeps O2 low but available for respiration.

  Regulation and ecological/human relevance

  • Nitrate reductase is inducible (by nitrate, light) and regulated by plant N status.
  • Excessive use of N fertilizers (Haber–Bosch ammonia → nitrate/urea) increases crop yield but causes nitrate leaching, eutrophication, greenhouse gas emissions (N2O) and groundwater contamination (methemoglobinemia in infants).
  • Crop management strategies: crop rotation with legumes, biofertilizers (Rhizobium, Azotobacter), efficient fertilizer application to minimize losses.

  Summary flow (simple): Atmosphere N2 ↔ (fixation) NH3/NH4+ → (nitrification) NO2- → NO3- → (assimilation) organic N (amino acids, proteins) → (ammonification) NH4+ → (denitrification) N2 (gas).

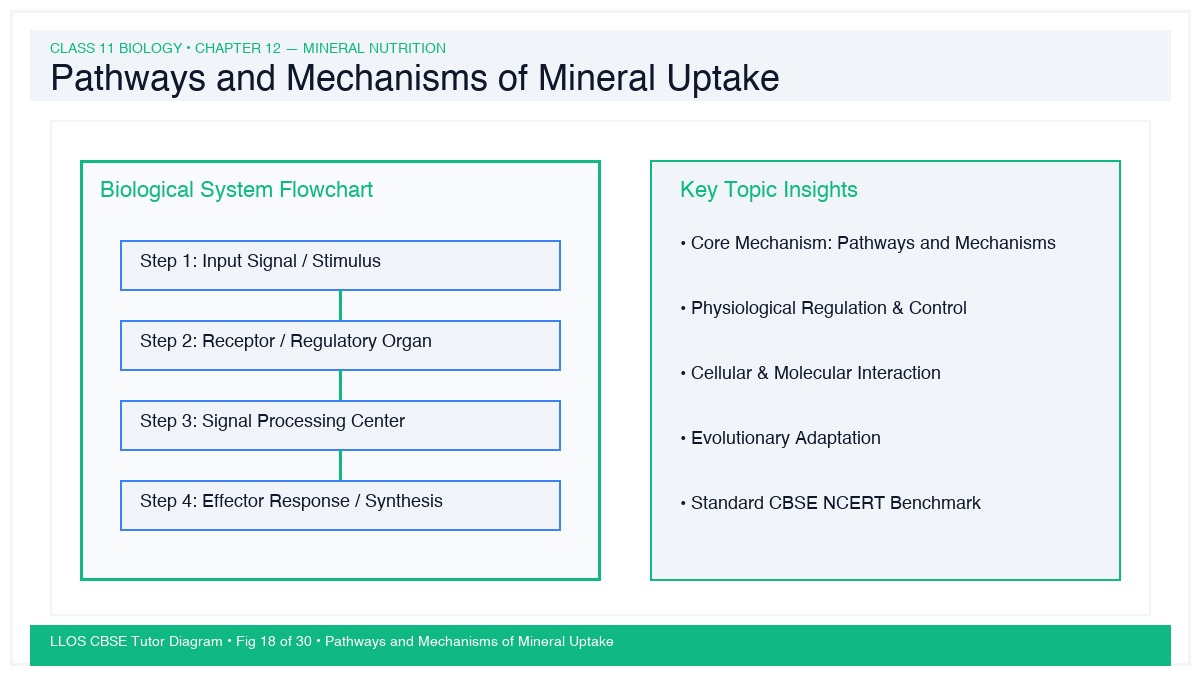

Fig 18 — Educational Diagram: Pathways and Mechanisms of Mineral Uptake

Overview
Plants obtain mineral nutrients from the soil by processes that move ions from the soil solution into root cells and then to the xylem for transport to the shoot. Uptake depends on physical movement in soil (root interception, diffusion, mass flow), anatomical routes through the root (apoplast, symplast, transmembrane) and membrane mechanisms (passive diffusion, facilitated diffusion, active transport driven by ATP and proton gradients).

Pathways through the root

• Root interception: Roots grow into soil particles and contact nutrients directly.
• Diffusion: Movement of ions down a concentration gradient from bulk soil to the depleted zone near the root.
• Mass flow: Ions carried to the root surface in the flow of water driven by transpiration.

Anatomical routes within the root

• Apoplastic route: Through cell walls and intercellular spaces; fast but interrupted by the Casparian strip at the endodermis.
• Symplastic route: Across the plasma membrane of one cell and then through plasmodesmata from cell to cell.
• Transmembrane route: Repeated crossing of plasma membranes (out–in–out) using transport proteins; important for selective uptake and movement across the endodermis into the stele.

Role of the Casparian strip
The Casparian strip (suberin layer) in the endodermis blocks the apoplast, forcing ions to cross a plasma membrane (transmembrane or symplast) before entering the xylem. This provides selectivity and control over ions that reach the shoot.

Membrane mechanisms of ion uptake

• Passive diffusion: Small uncharged molecules or very permeable ions move down electrochemical gradients through membrane pores.
• Ion channels (facilitated diffusion): Selective protein pores that allow ions (e.g., K+, Cl-) to move down electrochemical gradients rapidly; gating controls flow.
• Carrier-mediated transport (facilitated and active): Specific carrier proteins bind ions. Transport shows saturation kinetics and can be energized.
• Primary active transport: H+-ATPase (proton pump) hydrolyzes ATP to pump H+ out of the cell, generating a proton electrochemical gradient (membrane potential + pH difference).
• Secondary active transport: H+ electrochemical gradient drives uptake of nutrients against their concentration gradient via H+-coupled symporters or antiporters (e.g., H+/NO3-, H+/H2PO4- cotransport).

Energetics and selectivity
The H+-ATPase creates a negative membrane potential inside the cell and a proton motive force. This electrical and chemical gradient does two things: (1) draws positively charged ions (cations) into the cell electrically, and (2) provides energy for co-transport of anions and neutral molecules together with H+. Selectivity is achieved by specific transport proteins (channels and carriers) and by regulation of pumps and channels.

Loading into xylem and long-distance transport
After uptake into root cortical cells, ions are either symplastically or transmembrane-transported into the pericycle and then loaded into xylem vessels. Xylem transport to the shoots occurs in the transpiration stream; therefore transpiration rate strongly influences mass-flow delivery of soluble ions.

Biological interactions that affect uptake
Mycorrhizal fungi greatly increase the effective absorptive surface area for immobile nutrients (especially phosphate). Nitrogen-fixing bacteria provide biologically available nitrogen in root nodules of legumes (separate from uptake of mineral N).

Key takeaways

• Soil processes (diffusion, mass flow, root interception) determine nutrient supply to the root surface.
• Apoplast, symplast and transmembrane routes determine how ions traverse the root; the Casparian strip enforces membrane-mediated selectivity.
• H+-ATPase-driven proton gradients (primary active transport) power selective uptake (secondary transport) of most mineral ions.
• Transport proteins show saturation (carrier limitation) and specificity; channels allow rapid flow down gradients.

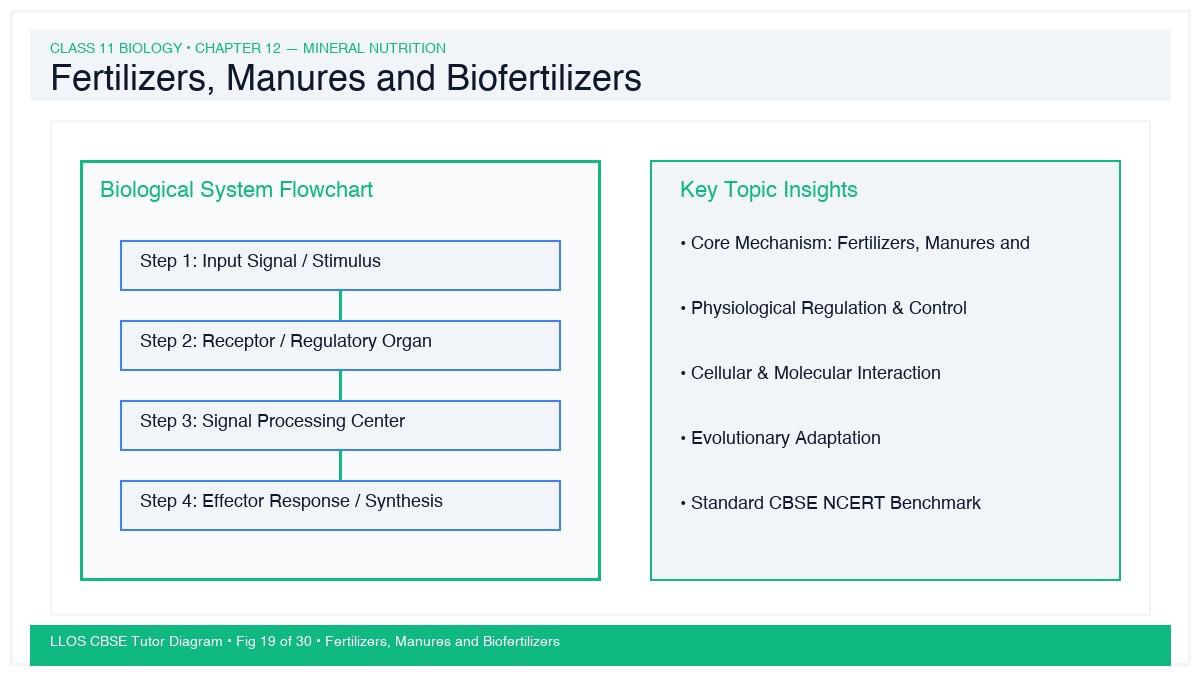

Fig 19 — Educational Diagram: Fertilizers, Manures and Biofertilizers

Overview

Plants require mineral nutrients in adequate amounts for growth. These nutrients are supplied from soil and external inputs: manures (organic), chemical fertilizers (inorganic) and biofertilizers (microbial). Each has distinct composition, mode of action, benefits and environmental impacts.

Manures (Organic Fertilisers)

• Definition: Decomposed organic matter derived from plants or animals (e.g., farmyard manure, compost, green manure, vermicompost).
• Characteristics: Provide a broad range of nutrients in low concentrations, release nutrients slowly, improve soil structure, water-holding capacity and microbial activity by adding humus.
• Examples: Farmyard manure (FYM), compost, green manure (freshly grown legumes ploughed into soil), vermicompost.
• Advantages: Improve soil fertility long-term, reduce erosion, increase soil biota and CEC (cation exchange capacity).
• Limitations: Bulkiness, lower nutrient concentration, slower action, seasonal availability.

Chemical Fertilisers (Inorganic)

• Definition: Manufactured salts supplying one or more major nutrients (N, P, K) in concentrated form.
• Common types: Nitrogenous (urea, ammonium sulphate, ammonium nitrate), Phosphatic (single superphosphate, DAP), Potassic (muriate of potash KCl), complex NPK blends.
• Characteristics: High nutrient content, rapid nutrient availability and predictable doses. Labeled by N-P-K percentages (e.g., 20-20-20).
• Advantages: Quick correction of nutrient deficiencies, easy transport and application, suitable for high-yield agriculture.
• Environmental concerns: Overuse leads to soil acidification, nutrient imbalance, leaching of nitrates into groundwater, eutrophication of water bodies and greenhouse gas emissions (N2O).

Biofertilisers

• Definition: Preparations containing living microorganisms which when applied to seeds, plant surfaces or soil mobilize nutrients and increase their availability to the host plant.
• Types & Roles:
  • Rhizobium: Symbiotic N2-fixers in legume root nodules (increase N availability).
  • Azotobacter, Azospirillum: Free-living N2-fixers (non-legumes, cereals).
  • Cyanobacteria (blue-green algae) & Azolla: N2-fixers used in wetland rice.
  • Phosphate Solubilizing Bacteria (PSB): Convert insoluble phosphates to soluble form.
  • Mycorrhizae: Fungi that increase uptake of P and micronutrients via extensive hyphal network.
• Advantages: Sustainable, reduce chemical fertilizer requirement, improve soil health and crop quality.
• Limitations: Microbe survival depends on soil/environmental conditions; slower and variable effects.

Comparison (quick)

• Manures: Improve soil organic matter; slow nutrient release.
• Fertilizers: Fast, concentrated nutrients; immediate yield response but possible environmental harm if misused.
• Biofertilisers: Environment-friendly; restore nutrient cycles; best used integrated with manures and fertilizers.

Application Methods

• Basal application: Applied at sowing/planting (common for P and K).
• Top dressing/Side dressing: Applied during growth (commonly N as urea).
• Foliar spray: Nutrient solution sprayed on leaves for quick correction of deficiencies.
• Seed inoculation: Biofertiliser coating of seeds (e.g., Rhizobium for pulses).

Practical Notes & Environmental Impact

• Integrated nutrient management (INM): Combine organic manures, chemical fertilizers and biofertilisers to maintain soil fertility and sustain yields.
• Misuse of chemical fertilizers causes nitrate leaching, eutrophication and N2O emissions; proper dose, timing and methods limit damage.
• Use of biofertilizers and organic manures reduces dependency on chemical fertilizers and improves soil health long-term.

Key Terms to Remember

• N-P-K: Nitrogen-Phosphorus (as P2O5)-Potassium (as K2O) — primary macronutrients labelled on fertilizers.
• FYM, SSP, DAP, MOP, Urea — common fertilizer/manure abbreviations.
• Nitrogen fixation, nitrification, ammonification, denitrification — microbial steps in the nitrogen cycle that affect fertilizer behaviour.

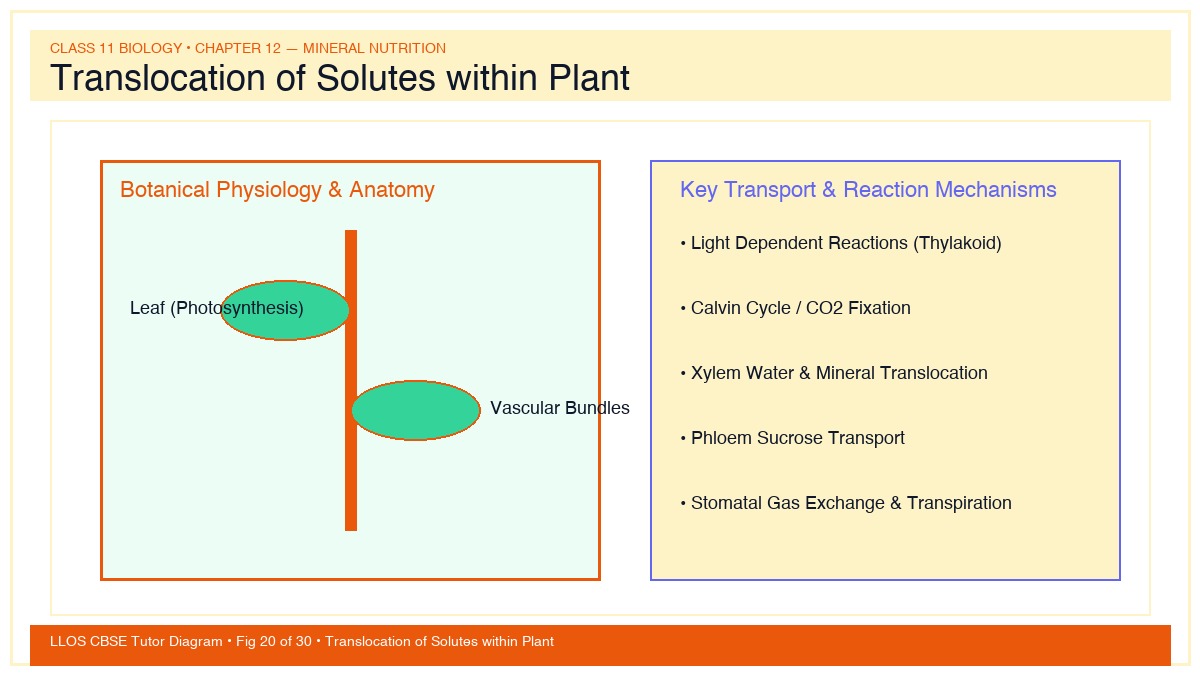

Fig 20 — Educational Diagram: Translocation of Solutes within Plant

Definition: Translocation of solutes is the long-distance, bulk movement of organic compounds (mainly sucrose), hormones, amino acids and some ions through the phloem from sites of synthesis or storage (sources) to sites of utilization or storage (sinks).

Pathways & tissues:

• Xylem: conducts mainly water and mineral ions upward (root to shoot) by transpiration pull.
• Phloem: the principal pathway for translocation of organic solutes. Main conducting elements are sieve-tube elements (STEs) and companion cells (CCs). Plasmodesmata connect CCs & STEs and also link cells for symplastic transport.

Key cellular players:

• Sieve-tube elements: enucleate conductive cells with sieve plates.
• Companion cells: metabolically active; load/unload sugars and maintain STE function.
• Phloem parenchyma and plasmodesmata: involved in storage and symplastic movement.

Source–Sink concept: Sources (e.g., mature leaves) export assimilates; sinks (young leaves, roots, fruits, seeds, storage organs) import and use or store them. Source–sink identity can change with development and season.

Mechanism — Pressure-flow (Mass flow or Münch) hypothesis (widely accepted):

1. At the source, sugars (mainly sucrose) are actively loaded into phloem sieve tubes (apoplastic or symplastic loading). Loading increases solute concentration in sieve tubes, lowering their water potential.
2. Water enters sieve tubes osmotically from adjacent xylem, raising turgor (hydrostatic) pressure at the source.
3. High pressure at the source drives bulk flow of phloem sap along sieve tubes toward regions of lower pressure (sinks).
4. At the sink, sucrose is actively or passively unloaded and used or stored; solute concentration in phloem falls, water exits back to xylem, reducing pressure at the sink.
5. The resulting pressure difference between source and sink produces directed mass flow of sap.

Phloem loading types:

• Apoplastic loading: sucrose is released into cell wall space and taken up into companion cells/STE via sucrose–H+ co-transporters (energy-dependent).
• Symplastic loading: sucrose moves cell-to-cell through plasmodesmata (can include polymer trapping where sucrose is transformed to larger oligosaccharides to retain them in sieve elements).

Molecular transporters & energy: Proton (H+)-ATPases on companion-cell membranes generate an electrochemical gradient. Sucrose–H+ symporters use this gradient to accumulate sucrose in phloem against its concentration gradient (active loading).

Evidence supporting phloem translocation mechanism:

• Girdling/ringing: removing a ring of bark (phloem) causes sugars to accumulate above the ring and starvation below, showing phloem transport and directionality.
• Aphid stylet experiments: aphids tap sieve elements and exude phloem sap; soluble composition and pressure measurements support pressure-flow.
• Radioactive carbon (14C) labeling: tracking labelled sugars shows movement from source leaves to sinks.

Rate & factors affecting translocation: Phloem transport velocity typically ranges from fractions of a meter per hour to several meters per hour (varies with species and conditions). Rates depend on:

• Source loading rate and sink demand
• Temperature (affects enzyme activity and viscosity)
• Sieve-tube radius and sap viscosity
• Integrity of phloem and pressure gradients

Physiological significance: Distribution of photosynthates for growth, storage (e.g., tubers, seeds), development (fruit filling), defense signaling (systemic signals), and maintenance of metabolic balance between organs.

Summary flow diagram (to draw): Source leaf (sucrose synthesis) → active loading into companion cell & sieve tube → water influx from xylem → high turgor at source → bulk flow through sieve tubes → unloading at sink → water returns to xylem.

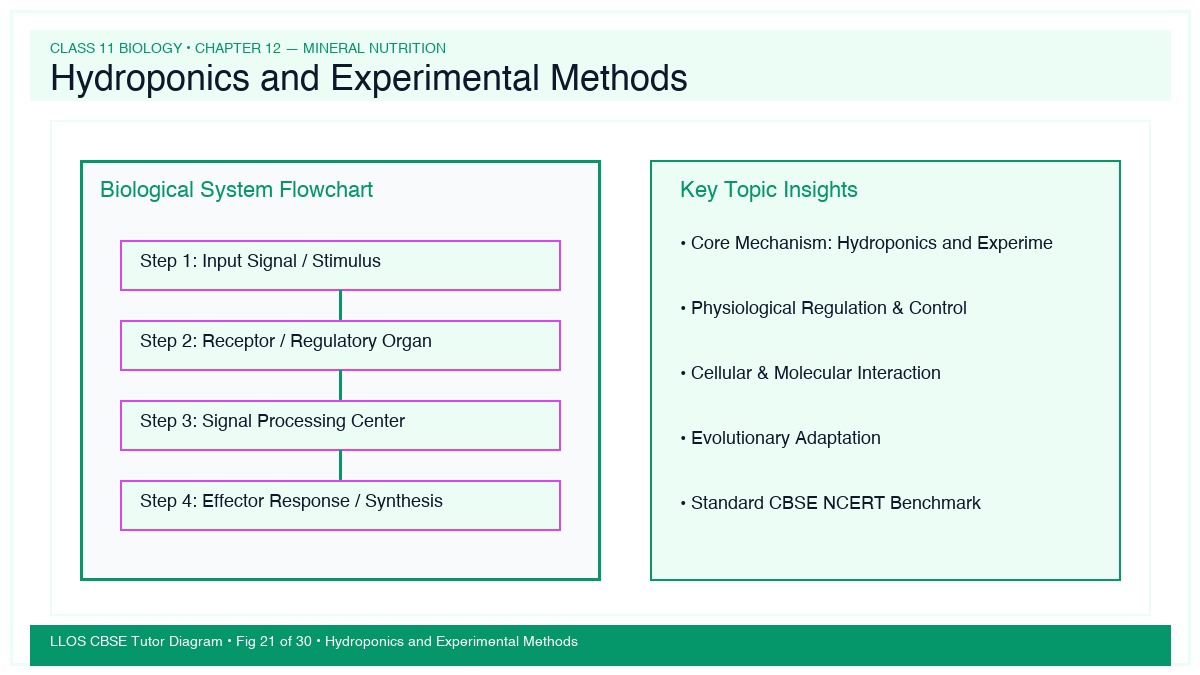

Fig 21 — Educational Diagram: Hydroponics and Experimental Methods

Overview: Hydroponics is the technique of growing plants without soil by supplying all essential minerals in an aqueous nutrient solution. In plant physiology and mineral nutrition studies, hydroponics (solution culture) provides a controlled way to vary and measure mineral supply, detect deficiency symptoms, and determine essentiality of elements.

Components of a hydroponic system

• Container or channel to hold nutrient solution (reservoir, NFT channels, pots).
• Support or inert medium (perlite, rockwool, cocopeat) or root-exposed systems (NFT, aeroponics).
• Nutrient solution (complete formula such as Hoagland's solution) with macronutrients and micronutrients.
• pH and electrical conductivity (EC) monitoring and adjustment tools.
• Aeration and circulation (air pumps, water pumps) to supply O2 to roots.

Types (common)

• Solution culture (roots immersed in stirred nutrient solution).
• Substrate culture (nutrient delivered to an inert medium: perlite, cocopeat, rockwool).
• Nutrient Film Technique (NFT) — thin film of solution flows past roots.
• Aeroponics — roots sprayed with nutrient mist.

Nutrient solution and management

• Complete solutions (e.g., Hoagland solution) supply N, P, K, Ca, Mg, S and trace elements (Fe, Mn, Zn, Cu, B, Mo). Hoagland is the standard laboratory nutrient solution used to grow many plants in solution culture.
• Maintain pH in the range ~5.5–6.5 for optimal availability of most nutrients.
• Monitor EC (electrical conductivity) to estimate total dissolved salts; typical EC for many vegetables ~1.2–2.5 mS/cm (species dependent).
• Regularly change or refresh solution to avoid ion imbalances and build-up of pathogens.

Experimental methods in mineral nutrition (using hydroponics)

1. Solution culture experiments: grow plants in defined nutrient solutions to control individual ions and concentrations.
2. Omission (minus-one) experiments: prepare complete solution and parallel solutions each lacking one element; observe which omission prevents completion of the life cycle—used to demonstrate essentiality.
3. Dilution/limitation experiments: grow plants with graded concentrations of a nutrient to find deficiency, optimum, and toxicity ranges (dose–response).
4. Sand or inert-medium culture: roots supplied with nutrient solution but supported on sterile sand/perlite—useful to separate root symptoms from soil effects.
5. Tracer/isotope experiments (advanced): use labelled isotopes (e.g., 15N) to follow uptake and translocation.
6. Controls and replication: always include complete-solution controls, multiple biological replicates, and randomized placement to reduce bias.

Design & practical steps for a simple omission experiment

1. Start with uniform seedlings and a complete nutrient solution (e.g., Hoagland).
2. Prepare one control (complete solution) and several test solutions each missing a single element (–N, –P, –K, etc.).
3. Grow plants under identical light, temperature, and aeration conditions; use several replicates per treatment.
4. Record growth parameters (germination, leaf number, root/shoot length, fresh/dry weight), visual deficiency symptoms, and time to flowering/seed set.
5. Conclude essentiality if plants deprived of an element fail to complete their life cycle or show specific deficiency symptoms not seen in control.

Advantages of hydroponics for experiments

• Precise control over nutrient concentrations and pH.
• Rapid detection of deficiency or toxicity symptoms.
• Reduced variability from soil heterogeneity and microbial interactions (if sterilized).
• Requires less water and space than field trials; scalable to lab or greenhouse.

Limitations

• Can be technically demanding (sterility, oxygenation, nutrient balancing).
• May not replicate soil-related phenomena (mycorrhizae, soil buffering).
• Root damage or pathogen outbreaks can rapidly affect whole system.

Practical notes: record pH and EC daily, use deionized water for preparing solutions, label all treatments clearly, and dispose of used nutrient solutions according to local regulations.

Fig 22 — Educational Diagram: Hydroponics and Nutrient Culture Techniques

Definition & principle: Hydroponics (nutrient culture) is the cultivation of plants without soil, using a nutrient-rich aqueous solution that supplies all essential mineral elements. The plant root absorbs ions directly from the solution; growth is controlled by solution composition, pH, oxygenation and physical support for roots.

Basic components of a hydroponic system:

• Reservoir with nutrient solution
• Support medium or root-holding structure (inert substrates like rockwool, cocopeat, perlite, or none in NFT/aeroponics)
• Delivery system (pumps, channels, drip lines, or spray nozzles)
• Monitoring & control: pH meter, EC meter (electrical conductivity), dissolved oxygen meter, timers

Common system types (brief):

• Deep Water Culture (DWC): roots suspended in oxygenated nutrient solution.
• Nutrient Film Technique (NFT): thin flowing film of nutrient solution passes along a sloped channel; roots contact the film.
• Drip systems: timed drips deliver nutrient solution to each plant's root zone.
• Ebb-and-flow (flood and drain): periodic flooding and draining of the root zone.
• Aeroponics: roots intermittently sprayed or misted with nutrient solution (maximizes oxygen).
• Wick systems: passive capillary feeding (simple, low-cost, for small plants).

Nutrient solutions & management: Plants require macronutrients (N, P, K, Ca, Mg, S) and micronutrients (Fe, Mn, Zn, Cu, B, Mo, Cl). A balanced solution supplies these in available ionic forms. Key controls:

• pH: affects nutrient availability. Optimal range for most hydroponic crops: 5.5–6.5.
• Electrical Conductivity (EC): indicates total dissolved salts. Typical ranges: leafy greens ~1.0–1.8 mS/cm; fruiting crops (tomato, cucumber) ~2.0–3.5 mS/cm.
• Dissolved oxygen: root oxygenation is critical—especially in DWC and NFT; low DO leads to root diseases and poor uptake.
• Temperature: solution temperature affects DO and uptake (ideal ~18–24°C for many crops).
• Sanitation & recirculation: recirculating systems save water/nutrients but need monitoring for disease, ion imbalance and salt buildup; periodic solution replacement or adjustment is required.

Physiological notes: In hydroponics the limiting-factor concept applies (Liebig's law): the nutrient in shortest supply relative to need limits growth. Ion ratios and competition (e.g., excess K+ can reduce Mg2+ uptake) are important. Root environment (oxygen, pH) strongly influences ion uptake rates.

Advantages: Higher yields per area, faster growth, precise nutrient control, reduced soil-borne disease, water use efficiency, suitability for controlled-environment agriculture and urban/vertical farms.

Limitations / risks: Initial setup cost, need for technical monitoring, vulnerability to pump/power failures, salt accumulation in recirculating systems, potential for rapid spread of pathogens if not sanitized.

Practical/educational example: Lettuce grown in NFT systems reaches harvest size faster than soil-grown lettuce under comparable light because roots have continuous access to well-oxygenated, balanced nutrients and water.

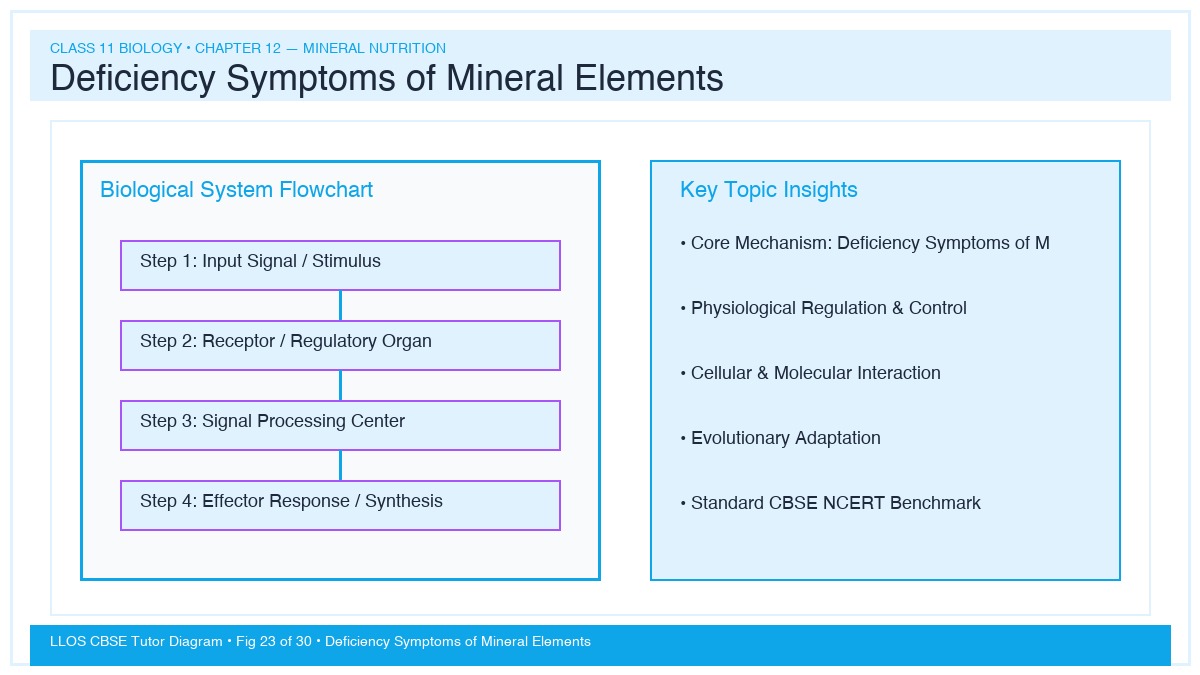

Fig 23 — Educational Diagram: Deficiency Symptoms of Mineral Elements

Overview: Mineral elements are essential for plant growth and metabolism. Deficiency of any essential element produces characteristic physiological and morphological symptoms because each element has specific roles (structural, osmotic, enzyme cofactor, redox, etc.). Symptoms depend on the element's function and mobility within the plant.

Mobility concept: Elements that are mobile in the phloem (e.g., N, P, K, Mg) are re-translocated from older leaves to new growth when deficient, so symptoms first appear on older leaves. Immobile elements (e.g., Ca, B, Fe) cannot be moved readily, so young leaves and growing points show symptoms first.

Common elements, physiological role and deficiency symptoms:

• Nitrogen (N) — role: component of amino acids, proteins, chlorophyll. Symptoms: general chlorosis (yellowing), especially of older leaves; reduced growth and small pale plants; lower yield and protein content.
• Phosphorus (P) — role: ATP, nucleic acids, membranes. Symptoms: stunted growth, dark green coloration and often purplish/red pigments (anthocyanin) on older leaves, delayed maturity and poor root development.
• Potassium (K) — role: osmotic regulation, stomatal function, enzyme activation. Symptoms: marginal chlorosis (leaf-edge yellowing) progressing to necrosis on older leaves, weak stems, increased susceptibility to drought and disease.
• Calcium (Ca) — role: cell wall stability, membrane integrity, tip growth. Symptoms: distorted or death of growing points, blossom-end rot in tomato/pepper, deformed young leaves; symptoms appear first in young tissues.
• Magnesium (Mg) — role: central atom of chlorophyll, enzyme activator. Symptoms: interveinal chlorosis (yellowing between veins) on older leaves; leaves may become reddish or bronzed; premature leaf drop.
• Sulfur (S) — role: amino acids (cysteine, methionine), vitamins. Symptoms: uniform chlorosis of young leaves (similar to N deficiency but on young leaves) and stunted growth.
• Iron (Fe) — role: electron transport, chlorophyll synthesis cofactor. Symptoms: interveinal chlorosis of young leaves (veins remain green); common in high pH/calcareous soils.
• Manganese (Mn) — role: photosystem II, enzyme cofactor. Symptoms: interveinal chlorosis on young leaves, brown spots or necrotic flecks; sometimes resembles Fe deficiency but often with small necrotic spots.
• Zinc (Zn) — role: enzyme cofactor, auxin metabolism. Symptoms: reduced leaf size, rosetting of leaves, interveinal chlorosis on young leaves, shortened internodes.
• Boron (B) — role: cell wall formation, reproductive development. Symptoms: death of growing points, malformed/new leaves, hollow or cracked stems and fruits (e.g., internal corking), poor flowering and fruit set.
• Copper (Cu) — role: redox enzymes, lignification. Symptoms: dieback of shoot tips, distorted young leaves, delayed flowering and reduced pollen viability.
• Molybdenum (Mo) — role: nitrate reductase cofactor, N metabolism. Symptoms: whiptail in cauliflower/Brassicas (narrow distorted leaves), general N-deficiency-type symptoms; poor nodulation in legumes.
• Chlorine (Cl) — role: osmotic and ionic balance, photosynthesis. Symptoms: wilting, chlorosis and necrosis, leaf bronzing in severe cases (rare as a deficiency).

Diagnosis and management: Diagnosis uses symptom recognition, tissue analysis, and soil testing. Management includes balanced fertilization (NPK and secondary/micronutrients), correcting pH (many micronutrient deficiencies occur in alkaline soils), foliar sprays for rapid correction (Fe, Zn, Mn, B), and soil amendments (lime or sulfur) as needed.

Key principles: Liebig's law of the minimum — plant growth is limited by the scarcest essential nutrient. Also beware of antagonisms (e.g., excess K or Ca reducing Mg uptake) and interactions with soil pH affecting availability.

Fig 24 — Educational Diagram: Rhizosphere Processes and Ion Availability

Definition and importance
The rhizosphere is the narrow zone of soil (millimetres) surrounding plant roots where physical, chemical and biological properties are strongly influenced by the root. It is the active interface controlling nutrient availability, uptake and interactions with soil microbes.

Main rhizosphere processes that control ion availability

• Root exudation: Roots release low-molecular-weight organic compounds (sugars, amino acids, organic acids such as citrate and malate), mucilage and enzymes (e.g., phosphatases). Exudates change soil chemistry, feed microbes and mobilize nutrients (for example, organic acids solubilize P bound to soil minerals).
• pH changes and cation exchange: Roots pump protons (H+) out of cells in exchange for nutrient cations (e.g., K+, Ca2+, Mg2+), altering rhizosphere pH and displacing adsorbed cations from soil colloids, increasing their concentrations in soil solution and making them available for uptake.
• Diffusion, mass flow and root interception (modes of nutrient supply):
  • Diffusion: movement of ions down a concentration gradient toward the root uptake zone (important for P, K, micronutrients).
  • Mass flow: movement of ions with the bulk flow of water driven by transpiration (important for nitrate, sulfate, calcium, magnesium).
  • Root interception: direct growth of roots into previously untapped soil, contacting nutrient-containing soil particles (important for immobile nutrients).
• Microbial interactions and symbioses: Mycorrhizal fungi increase uptake area and mobilize P and other nutrients; rhizobia in legumes fix atmospheric N; plant growth-promoting rhizobacteria (PGPR) produce siderophores, organic acids and enzymes that solubilize nutrients or alter availability.
• Chelation and complexation: Microbial or root-derived chelators (e.g., siderophores, organic acids) bind metal ions (Fe3+, Al3+) and keep them soluble and accessible to roots in soils where they otherwise would precipitate.
• Enzymatic mobilization: Phosphatases released by roots and microbes hydrolyse organic phosphorus compounds to release inorganic phosphate usable by plants.

Examples of how these processes affect ion availability
In alkaline soils iron (Fe3+) is insoluble and causes chlorosis; roots and associated microbes release protons and siderophores to solubilize Fe and prevent deficiency. In acid soils phosphorus can be fixed by Al and Fe oxides; organic acids and phosphatases in the rhizosphere help liberate phosphate.

Practical implications for agriculture
Understanding rhizosphere processes helps in managing fertiliser use (timing, placement), selecting crops or varieties with efficient root exudation or mycorrhizal associations, and using bioinoculants (rhizobia, mycorrhizae, PGPR) to improve nutrient use efficiency and reduce environmental losses.

Key concepts to visualise:

• Depletion zone: a gradient of lower ion concentration near roots due to uptake.
• pH microgradient: more acidic conditions at root surface compared to bulk soil.
• Saturation kinetics: carrier-mediated uptake shows saturation at higher external ion concentrations.

CBSE context: These ideas explain how roots and soil biota control mineral nutrition; they connect to chapters on plant nutrition, soil chemistry and sustainable agriculture practices.

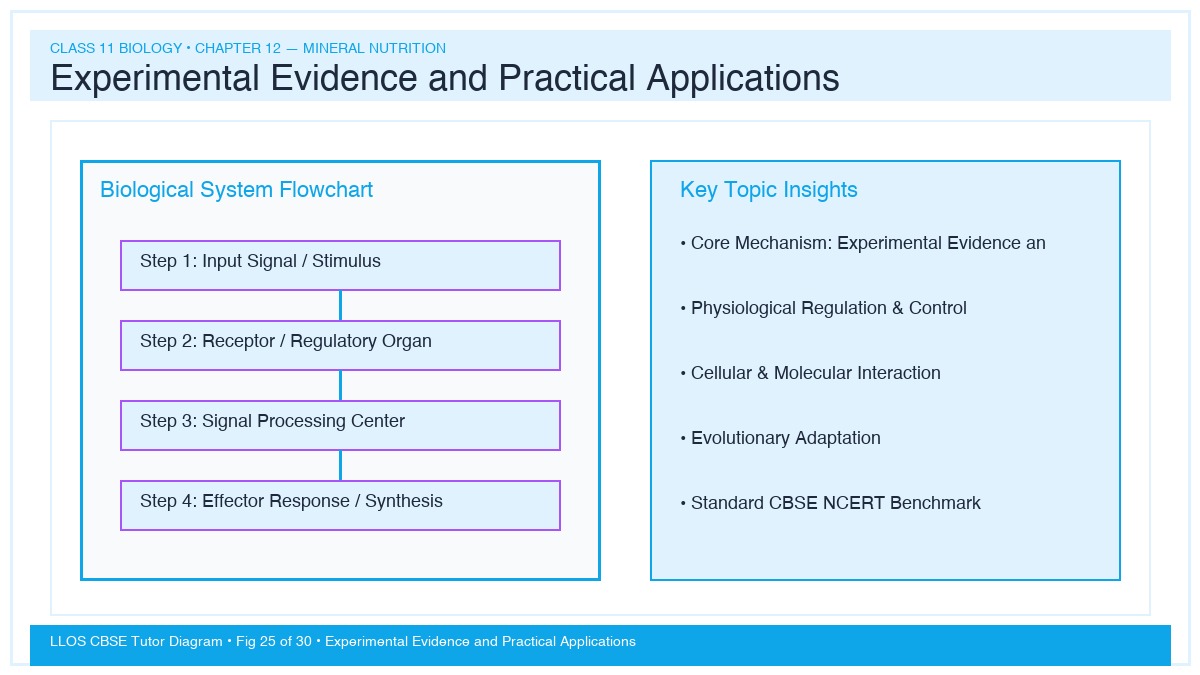

Fig 25 — Educational Diagram: Experimental Evidence and Practical Applications

Overview

Experimental evidence for mineral nutrition shows that plants require inorganic ions (macro‑ and micro‑nutrients) for normal growth, and that deficiency of any essential element produces characteristic symptoms and reduced biomass. Practical applications translate these findings into methods to improve crop yield, quality and sustainable soil management.

Key experiments (methods and outcomes)

• Hydroponic (water) culture using complete vs deficient nutrient solutions: Grow identical seedlings in a full nutrient solution (e.g., Hoagland solution) and in solutions lacking one element (for example, –N, –K, –Fe). Observation: plants in the complete solution show normal growth; those in deficient solutions develop specific deficiency symptoms (chlorosis, stunted growth, necrosis) and reduced biomass. This proves that the missing ion is essential.
• Sand culture or washed sand/vermiculite with defined nutrient solutions: Similar to hydroponics but uses inert substrate; allows control of nutrient supply and demonstrates uptake from solution only.
• Use of radioisotopes and tracers (e.g., 32P, 15N): Radioactive or stable isotopic tracers are supplied in nutrient solution or soil. Autoradiography or mass spectrometry shows uptake, transport pathways and sink–source relationships (e.g., 32P moving into growing leaves or seeds), confirming active uptake and internal translocation.
• Microorganism inoculation and nitrogen fixation assays: Comparing legumes with and without Rhizobium inoculation shows increased nitrogen content and growth in inoculated plants. Acetylene reduction assay (ARA) or 15N incorporation demonstrate biological N fixation.
• Analytical techniques (evidence of nutrient status): Flame photometry (or atomic absorption/ICP) measures leaf or soil concentrations of K, Na, Ca, Mg, etc., correlating nutrient levels with plant health. Tissue analysis before and after fertilization demonstrates uptake and correction of deficiencies.

How experiments show cause-effect

• Controlled removal (single nutrient omission) + controls → specific symptoms and lower biomass demonstrate necessity of that nutrient.
• Re-supplying the omitted nutrient (rescue experiment) reverses symptoms — confirms specificity.
• Tracer movement and analytical quantification show uptake pathways and amounts, distinguishing passive diffusion from active transport.

Practical applications derived from these findings

• Fertilizer management: Use of balanced N-P-K fertilizers and micronutrient supplements based on soil/tissue testing to avoid deficiency or toxicity; calculating application rates to meet crop requirements.
• Hydroponics and protected cultivation: Soil-less agriculture (NFT, deep water culture, ebb-and-flow) uses precisely formulated nutrient solutions for high-value vegetables and ornamentals (e.g., lettuce, tomato), allowing higher yields and water efficiency.
• Biofertilizers and crop rotation: Use of Rhizobium, Azospirillum, mycorrhizae to improve nutrient availability (biological nitrogen fixation and P uptake) and reduce chemical fertilizer dependence.
• Foliar feeding and micronutrient sprays: Rapid correction of deficiencies (e.g., iron chelates to correct iron chlorosis) for immediate effect on visible symptoms and yield.
• Soil amendment and remediation: Liming acid soils to raise pH and increase availability of Ca/Mg and reduce Al toxicity; gypsum or salt management in sodic soils; phytoremediation using plants to extract heavy metals.
• Precision agriculture and fertigation: Site-specific nutrient application, drip fertigation, and use of sensors and tissue tests to optimize nutrient use efficiency and reduce environmental runoff.

Classroom/home demonstration (simple hydroponic experiment)

• Grow three identical bean/pea seedlings: one in full nutrient solution, one in solution lacking nitrogen, one in plain water. Over 2–3 weeks note differences in leaf color, height and biomass. Reintroduce nitrogen to the deficient plant to observe recovery.

Important notes

• Deficiency symptoms often overlap; laboratory tissue/soil analysis and controlled omission/rescue experiments help identify the limiting nutrient.
• Excess of an element can be toxic; uptake and growth vs concentration typically show an optimal range — deficiency at low concentration and toxicity at high concentration.

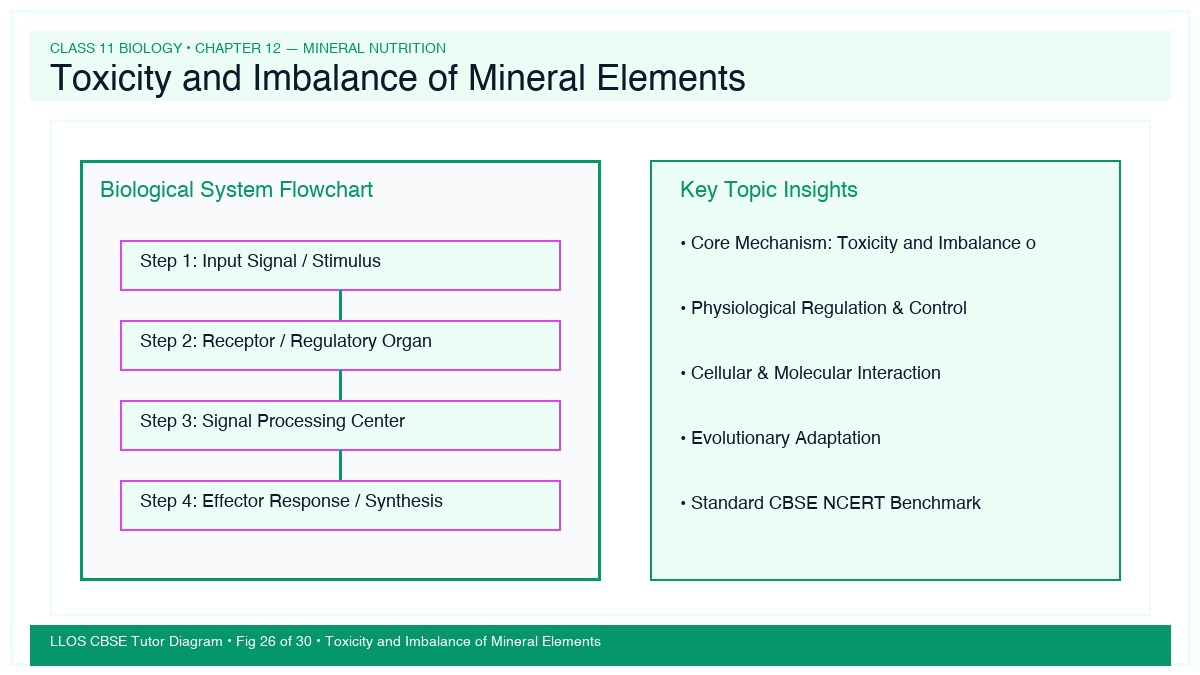

Fig 26 — Educational Diagram: Toxicity and Imbalance of Mineral Elements

Overview

Toxicity and imbalance of mineral elements refers to the harmful effects on plants (and indirectly on animals and humans) when essential or non‑essential elements are present in concentrations either below the required level (deficiency) or above the tolerable level (toxicity). Plant health is optimal only within a limited concentration range for each element; outside that range growth suffers.

Key concepts

• Optimal range: Each nutrient has a deficiency threshold, an optimum range, and a toxicity threshold. Growth response vs nutrient concentration is typically bell‑shaped (deficiency → optimum → toxicity).
• Deficiency symptoms: Stunting, chlorosis, necrosis, poor flowering/fruiting depending on the element and its mobility in the plant.
• Toxicity symptoms: Leaf burn, chlorosis/bronzing, inhibited root growth, reduced photosynthesis, and ultimately lowered yield or plant death.
• Interactions — antagonism and synergism: Presence of one ion can reduce (antagonism) or enhance (synergism) the uptake of another (e.g., high K+ can antagonize Mg2+ uptake; Ca2+ can reduce sodium toxicity by competing for uptake sites).
• Soil factors: pH, redox conditions, organic matter and salinity control availability. For example, low pH increases availability (and risk of toxicity) of Fe, Mn, Al; high pH increases availability of Mo but may induce Fe deficiency.

Mechanisms of toxicity

• Direct disruption of cellular processes: Excess ions may disrupt enzyme activities, membrane integrity, nutrient homeostasis or photosynthetic machinery.
• Imbalance of nutrient ratios: Overabundance of one nutrient can competitively inhibit uptake or transport of others (ionic competition at root transporters).
• Generation of oxidative stress: Some excess metals (Fe, Cu) participate in Fenton reactions producing reactive oxygen species that damage tissues.

Important examples in agriculture and health

• Salinity and sodium toxicity: High Na+ in saline soils causes osmotic stress and ion-specific toxicity (leaf burn, growth inhibition).
• Aluminium toxicity: In acidic soils Al3+ becomes soluble, inhibits root elongation and reduces water/nutrient uptake (common in acidic tropical soils).
• Iron toxicity in paddy: Waterlogged soils make Fe2+ abundant; excess causes bronzing and yield loss in rice.
• Boron and chloride: Both essential in small amounts but toxic at slightly higher concentrations (leaf tip burn, necrosis).
• Micronutrient imbalances: Zn deficiency leads to stunting and chlorosis; Cu excess causes root and shoot abnormalities. Heavy metals (Pb, Cd) accumulate in crops and pose human health risks.

Management strategies

• Soil testing and balanced fertilization to maintain nutrients within optimal ranges.
• Adjusting soil pH (lime to reduce acidity and Al solubility; sulfur to lower pH when needed).
• Use of gypsum or Ca amendments to ameliorate sodic soils (reduce Na+ toxicity).
• Water management (avoid prolonged waterlogging to reduce Fe2+ toxicity in non‑adapted crops).
• Phytoremediation or removal of contaminated soils/crops where heavy metal buildup occurs.

Takeaway: Healthy plant nutrition requires maintaining each mineral within a narrow concentration window. Both deficiency and excess are harmful; interactions among elements and soil conditions (especially pH and redox state) determine availability and risk of toxicity.

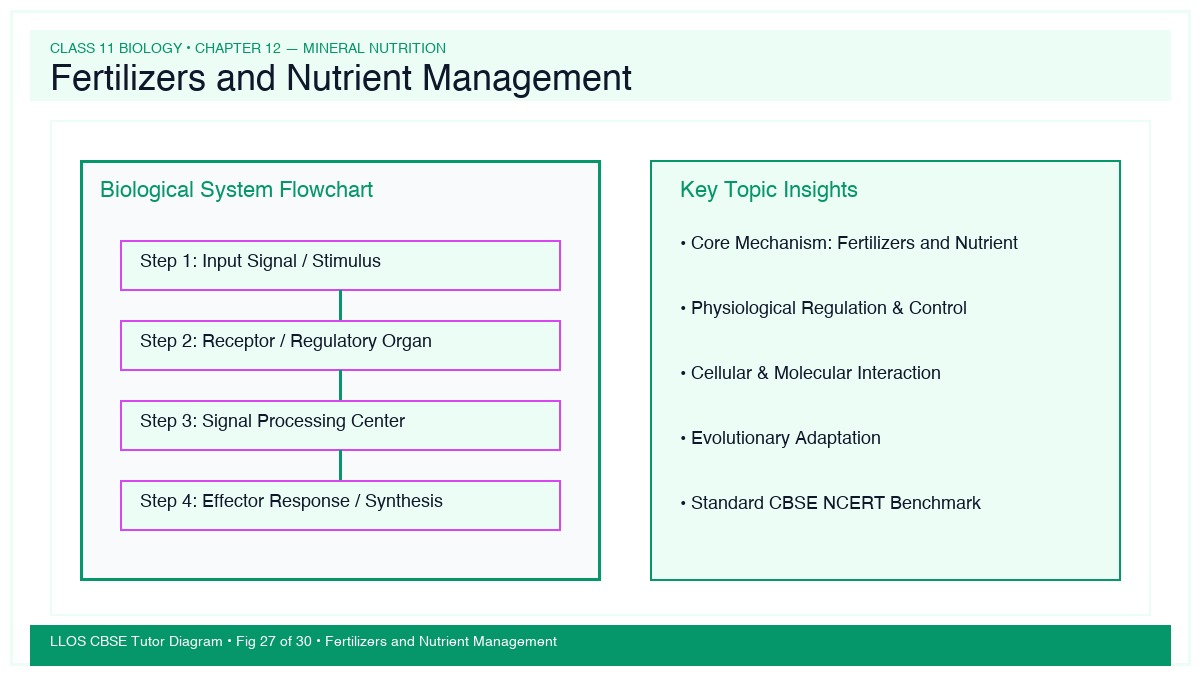

Fig 27 — Educational Diagram: Fertilizers and Nutrient Management

Overview
Fertilizers are materials (organic or inorganic) applied to soil or plants to supply one or more essential nutrients required for plant growth. Nutrient management is the set of practices that ensures plants receive the right nutrients, in the right amounts, at the right time and place to maximize yield while minimizing economic cost and environmental harm.

Types of fertilizers

• Organic fertilizers / manures: compost, farmyard manure, green manure, vermicompost. They improve soil structure, water retention and supply nutrients slowly.
• Inorganic (chemical) fertilizers: concentrated sources of primary nutrients—nitrogenous (e.g., urea, ammonium sulfate, ammonium nitrate), phosphatic (e.g., single superphosphate, triple superphosphate, DAP) and potassic (e.g., muriate of potash KCl, sulfate of potash K2SO4).
• Biofertilizers: living microorganisms that fix atmospheric N or solubilize P (e.g., Rhizobium, Azotobacter, Azospirillum, phosphate-solubilizing bacteria, mycorrhizae).

Essential concepts

• Balanced fertilization: apply nutrients proportionally to crop needs (N, P, K and secondary/micronutrients) rather than over-applying one nutrient.
• 4R Nutrient Stewardship: Right source, Right rate, Right time, Right place.
• Integrated Nutrient Management (INM): combines organic manures + chemical fertilizers + biofertilizers + good soil practices to maintain long-term soil fertility and crop productivity.
• Nutrient transformations & losses: mineralization, immobilization, nitrification, denitrification, leaching (especially NO3-), volatilization (NH3), adsorption/fixation (P and K). These processes affect availability and efficiency.
• Fertilizer Use Efficiency (FUE): a measure of how much of applied nutrient is taken up by the crop; improved by split application, placement (banding vs broadcast), use of inhibitors, and matching application to crop demand.

Environmental and practical issues

• Excessive N leads to nitrate leaching (groundwater contamination) and eutrophication of water bodies; high ammonia causes volatilization and loss.
• Overuse of P and K is wasteful; some P becomes fixed and unavailable in soil.
• Acidification of soil can occur with long-term use of ammonium fertilizers.
• Seed/plant 'fertilizer burn' may occur if concentrated fertilizers contact roots/seeds—use recommended placement or dilution for foliar feeds.

Practical nutrient management steps

• Perform soil testing to determine existing nutrient status and lime requirement (pH correction).
• Use recommended fertilizer doses for the crop and soil class; prefer split applications to match crop uptake curves.
• Adopt INM: apply basal organic matter, use biofertilizers for legumes, dose chemical fertilizers as per stage.
• Use decision tools: leaf color charts, SPAD chlorophyll meters, yield response curves, and local extension recommendations.

Summary
Good nutrient management maximizes crop yield and quality while maintaining soil health and minimizing environmental damage. It relies on correct fertilizer choice, accurate dose calculation, timely application and integration of organic and biological inputs.

Fig 28 — Educational Diagram: Summary and Importance of Mineral Nutrition

Summary
Mineral nutrition is the study of how plants obtain and use inorganic elements (ions) from soil and water. Essential mineral elements are divided into macronutrients (C, H, O are from air/water; primary: N, P, K; secondary: Ca, Mg, S) and micronutrients (Fe, Mn, Zn, Cu, B, Mo, Cl, Ni). A mineral is considered essential if its absence prevents completion of the plant life cycle and it is directly involved in plant metabolism.

Main roles of mineral elements

• Structural: Ca in cell walls, Si in supporting tissues.
• Metabolic cofactors: Fe, Mg, Mn, Zn, Cu as enzyme cofactors and in electron transport (e.g., Fe in cytochromes, Mg at chlorophyll center).
• Osmotic and ionic balance: K maintains turgor, stomatal functioning and phloem loading.
• Energy and macromolecule synthesis: P in ATP, nucleic acids and phospholipids.
• Redox and electron transfer: Fe, Cu in respiration and photosynthetic electron transport.

Uptake and transport mechanisms

• Root interception, mass flow (solutes carried in transpiration stream), and diffusion (movement down a concentration gradient) deliver ions to root surface.
• Ion uptake by roots occurs via passive channels and active carrier-mediated transport (often H+-ATPase driven). Carrier uptake shows saturation kinetics (Michaelis–Menten).
• Long-distance transport: xylem (main pathway for mineral movement with transpiration) and phloem (for redistribution of some nutrients like N in amino acids and P as organic phosphates).
• Symbioses: mycorrhizae enhance P and micronutrient uptake; rhizobia fix atmospheric N in legumes.

Deficiency and toxicity
Deficiency symptoms are element-specific (e.g., N: general chlorosis and stunted growth; Fe: interveinal chlorosis on young leaves; K: marginal leaf scorching). Excesses or antagonistic interactions can cause toxicity or induce deficiency of other elements (e.g., high Ca can reduce Mg uptake).

Importance (why mineral nutrition matters)

• Agriculture: Proper nutrient balance maximises yield, quality (fruit sweetness, protein content), and resistance to pests/diseases. Over/under-application reduces productivity and harms the environment (eutrophication from N/P runoff).
• Human nutrition: Plant mineral content determines dietary supply of essential minerals (Fe, Zn, I via biofortification or soil management).
• Sustainable practices: Soil testing, balanced fertilization, use of biofertilizers (rhizobia, mycorrhizae), and integrated nutrient management maintain soil fertility over time.

How mineral nutrition is studied and applied
Hydroponics and nutrient solutions allow control of individual elements to detect specific deficiencies. Analytical techniques (flame photometry, atomic absorption spectrophotometry) quantify tissue concentrations for diagnosis and fertilizer recommendations.

Takeaway
Mineral nutrition connects plant physiology, soil science, agriculture and human health. Understanding uptake mechanisms, roles of elements, and management strategies enables efficient and sustainable crop production.

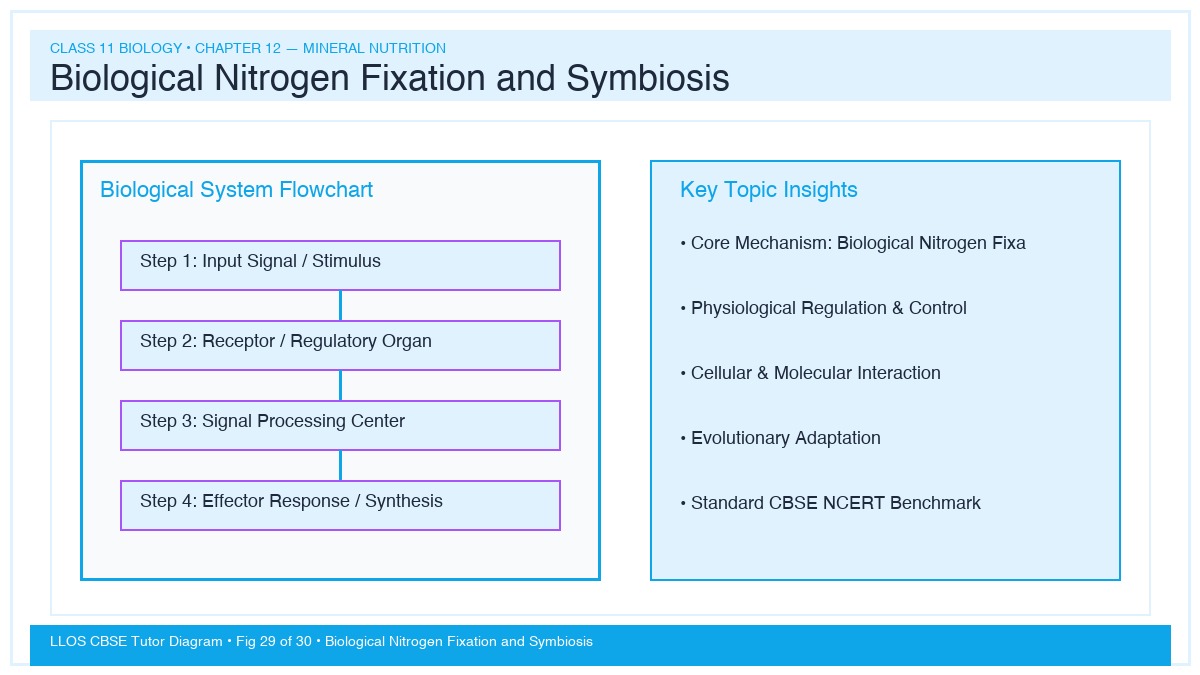

Fig 29 — Educational Diagram: Biological Nitrogen Fixation and Symbiosis

Overview
Biological nitrogen fixation (BNF) is the conversion of atmospheric nitrogen (N2) into ammonia (NH3) or related compounds by certain prokaryotes. This process is essential because most organisms cannot use gaseous N2 directly. BNF is carried out by free-living bacteria, associative bacteria, symbiotic bacteria and some cyanobacteria. Symbiosis — a close and often long-term biological interaction between two different biological organisms — is the most agriculturally important mode of BNF when it occurs between nitrogen-fixing bacteria and plants (especially legumes).

Key components

• Nitrogenase: The enzyme complex that reduces N2 to NH3. It is oxygen-sensitive and requires high energy (ATP) and electrons.
• Host plant: Provides carbohydrates (energy) and a low-oxygen environment required for nitrogenase activity.
• Leghemoglobin: A plant-produced hemoprotein in legume nodules that binds O2, maintaining a microaerobic environment to protect nitrogenase while allowing respiration.

Biochemical reaction
The overall simplified reaction catalyzed by nitrogenase is:

N2 + 8 H+ + 8 e− + 16 ATP → 2 NH3 + H2 + 16 ADP + 16 Pi

Note: The reaction consumes a large amount of ATP and produces H2 as a by-product.

Ammonia assimilation
The fixed ammonia is incorporated into organic molecules mainly by two pathways in microbes and plants:

• Glutamine synthetase (GS) + Glutamate synthase (GOGAT) pathway:
  • GS: NH4+ + Glutamate + ATP → Glutamine + ADP + Pi
  • GOGAT: Glutamine + α-ketoglutarate + NAD(P)H → 2 Glutamate
• Glutamate dehydrogenase (less common at low NH4+):
  • α-ketoglutarate + NH4+ + NAD(P)H ↔ Glutamate + NAD(P)+

Symbiotic nitrogen fixation in legumes (Rhizobium-legume interaction)

• Recognition and attachment: Plant root hairs release flavonoids that attract Rhizobium. In response, Rhizobium synthesizes Nod factors (lipochitooligosaccharides).
• Root hair curling and infection: Nod factors trigger root hair curling and cause the plant cell wall to invaginate, forming an infection thread through which bacteria enter.
• Nodule formation: Cortical cell division produces a nodule. Within nodules, bacteria differentiate into bacteroids capable of fixing nitrogen.
• Functional nodule: Leghemoglobin maintains low free O2. Bacteroids receive carbohydrates and ATP (from host metabolism) and fix N2 to NH3, which is assimilated and transported as amino acids to the plant.
• Types of nodules: Determinate nodules (spherical, e.g., Glycine—soybean) and indeterminate nodules (elongated with persistent meristem, e.g., Pisum—pea).

Other biological nitrogen fixers and symbioses

• Free-living nitrogen fixers: Azotobacter, Clostridium.
• Associative nitrogen fixers: Azospirillum and some Enterobacteria associate with grasses and cereals, improving nitrogen uptake but not forming nodules.
• Cyanobacteria (blue-green algae): Anabaena and Nostoc fix N2; Anabaena forms symbiosis with the water fern Azolla (used as green manure in paddy fields).
• Actinorhizal symbiosis: Frankia bacteria form nodules on roots of non-legume plants (e.g., Alnus) and fix nitrogen.

Physiological constraints and adaptations

• Nitrogenase is irreversibly inactivated by O2; leghemoglobin and compartmentalization (heterocysts in some cyanobacteria) provide low-O2 environments.
• High ATP demand: plant provides sugars, and nodules have high respiration to generate ATP.
• Regulation: Plants control nodule number (autoregulation of nodulation) and supply of carbon to regulate fixation as needed.

Agricultural and ecological significance

• BNF replenishes soil nitrogen naturally — reduces need for chemical fertilizers.
• Legume crops and green manures (e.g., soybean, pea, Sesbania, Azolla) are used in crop rotation to improve soil fertility.
• Biofertilizers containing Rhizobium, Azospirillum, Azotobacter and cyanobacteria are applied to enhance crop yields sustainably.

Summary
Biological nitrogen fixation converts inert atmospheric N2 into biologically usable forms through nitrogenase-containing organisms. Symbiotic associations, especially Rhizobium-legume nodules and cyanobacteria–Azolla, are central to natural and agricultural nitrogen cycling. These processes are energy-intensive and carefully regulated to protect nitrogenase from oxygen while supplying the fixed nitrogen needed for growth.

Fig 30 — Educational Diagram: Nitrogen Cycle

Overview
Nitrogen (N) is an essential element in amino acids, proteins, nucleic acids and many coenzymes. Although atmospheric N2 makes up about 78% of air, most organisms cannot use N2 directly. The nitrogen cycle describes the conversion of nitrogen between its various chemical forms in the atmosphere, biosphere and geosphere, mediated by physical processes and microorganisms.

Major forms of nitrogen: N2 (atmosphere), organic N (proteins, nucleic acids), NH3 (ammonia), NH4+ (ammonium), NO2- (nitrite), NO3- (nitrate), N2O (nitrous oxide).

Key processes (with biological agents)

1. Nitrogen fixation: Conversion of atmospheric N2 to ammonia (NH3) or related forms. Biological fixation is performed by nitrogenase-containing microbes: free-living bacteria (Azotobacter), symbionts (Rhizobium in legume root nodules), cyanobacteria (Anabaena). Symbiotic nodules contain leghemoglobin to protect nitrogenase from O2. Abiotic fixation occurs by lightning and industrially by the Haber–Bosch process.
   Example (industrial): N2 + 3H2 → 2NH3 (Haber–Bosch)
2. Ammonification (Mineralization): Decomposition of organic N (from dead organisms and wastes) by saprophytic microbes produces NH3 which in soil is often converted to NH4+ (ammonium) in acidic to neutral soils.
3. Nitrification: Two-step aerobic oxidation of NH4+ to NO3-:
   • Step 1 (by Nitrosomonas and similar): NH4+ → NO2- (nitrite)
   • Step 2 (by Nitrobacter and similar): NO2- → NO3- (nitrate)
   Nitrate (NO3-) is highly soluble and is the major form of nitrogen taken up by many plants.
4. Denitrification: Under anaerobic conditions, some bacteria (Pseudomonas, Clostridium, and others) reduce NO3- back to gaseous forms (NO, N2O, N2), returning N to the atmosphere and causing loss of soil nitrogen.
5. Assimilation: Plants absorb NH4+ and NO3- and incorporate N into organic molecules (amino acids, nucleotides). Animals obtain N by eating plants or other animals and incorporate organic N into their own tissues.
6. Leaching and runoff: Excess NO3- from soils (from fertilizers or mineralization) can leach into groundwater or be carried into surface waters, contributing to eutrophication.

Significance: The nitrogen cycle sustains primary productivity by supplying biologically available nitrogen. Human activities—especially industrial fixation (fertilizer production), extensive use of synthetic fertilizers, and fossil fuel combustion—have greatly increased the amount of reactive nitrogen in ecosystems, causing problems such as nitrate pollution, eutrophication, and increased N2O (a greenhouse gas).

Interconnections & control points: Biological fixation and denitrification are critical controls on the amount of bioavailable nitrogen. Crop practices (legume rotations, green manuring), proper fertilizer management and wastewater treatment (controlled denitrification) can manage nitrogen availability and reduce environmental impacts.
